Other grinding operations in automotive industry

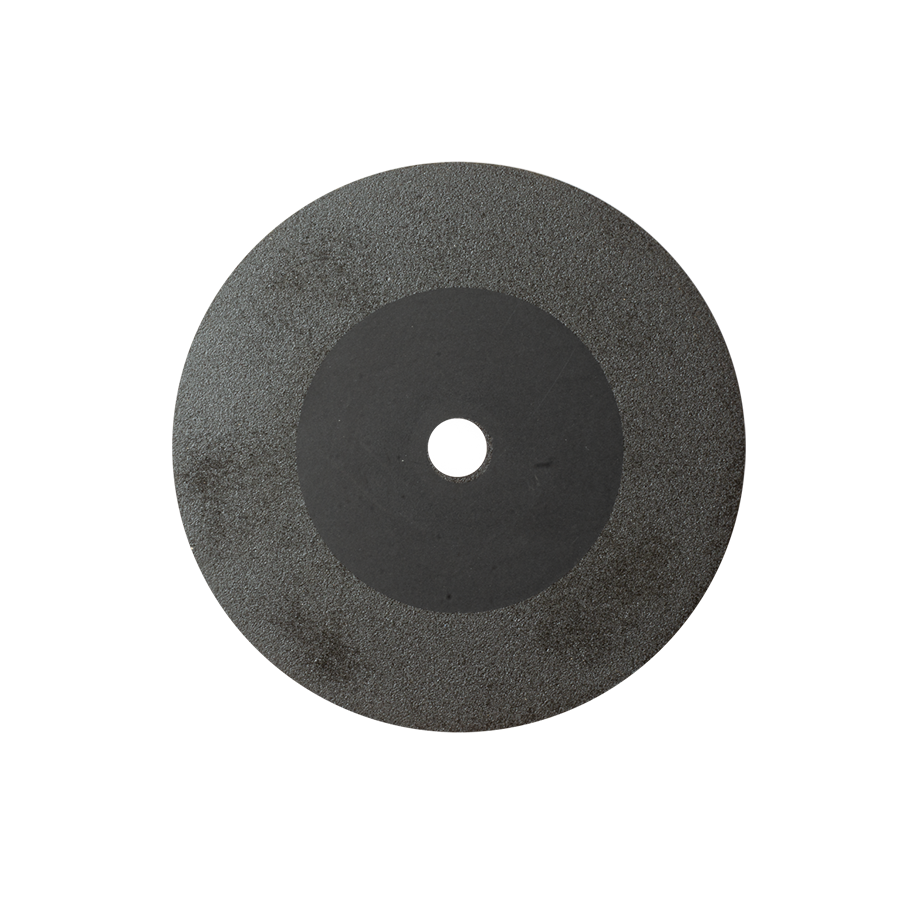

BOWDEN HOUSING CUTTING-OFF

An important requirement during the cutting-off operations of automotive components is high precision cutting, correct geometry and high quality of the surface.
Thanks to many years of experience built up with automotive companies, ANDRE is able to offer the optimal grinding wheels for this operation.

| TYPE 41

41 - D x T x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
41	200x1,0x20	M60Q8B688	80
41	200x1,2x22,2	97A60T12B728	80

[*] Grinding wheels allowed to work only in the enclosed working area.

Ask the Sales Department about the full offer and available characteristics.

GRINDING OF CONSTANT-VELOCITY JOINTS

When grinding swivel joints, high precision is an important requirement, as any deviation in required tolerances of the geometry can result in premature wear. Thanks to the many years of experience built up in this operation, ANDRE is able to offer suitable grinding wheels, for less and more demanding users.

| TYPE 1X

1X - D x T x H - nr rys

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1X	610x85x203,5	99AY90K7VE01N	63

[*] Ask the Sales Department about the full offer and available characteristics.

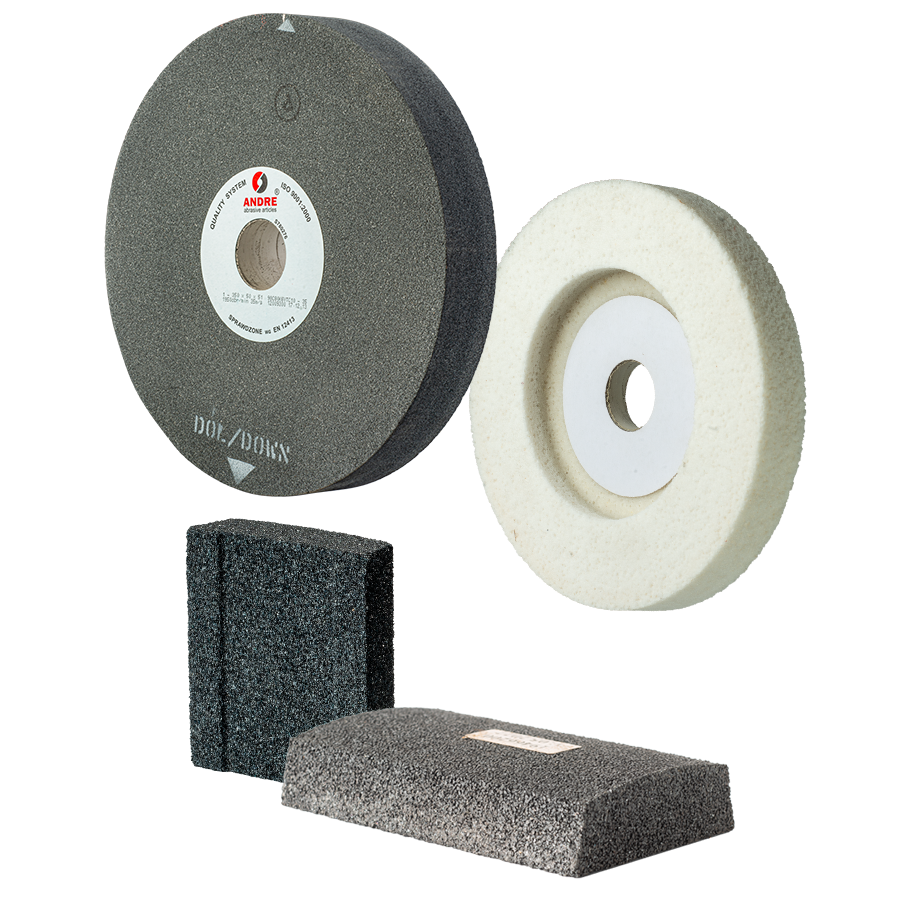

CYLINDER HEAD GRINDING

A very important requirement when grinding engine heads, is to achieve the proper flatness of the surface and the required surface roughness. With ANDRE tools, the required parameters can be obtained easily and quickly.

| TYPE 1 | TYPE 5 | TYPE 3113 | TYPE 3122

1 - D x T x H

5 - D x T x H - P...F...

3122 - B/A x C x L - R

1X - D x T x H - no. pic.

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1	350x63x127	8C46H8VTC10PP	35
5	250x40x76 - P135F10	98C46H8VTC10PP	35
3113	66/42x20/2x63 - R150V10	98C46J8VTC10	-
3122	65/57x25x85 - R150	99A20H12VTE10PP	-

[*] Ask the Sales Department about the full offer and available characteristics.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
