TYPE 3801 | TYP 3802
GRINDING WHEELS FOR USE IN PULP MILLS
TYPE 3801 and 3802 grinding wheels, working together are designed for use in mustard and vegetable pulp mills. Grinding wheels are designed to meet the highest demands for quality, performance, safety and environmental protection.
ANDRE TYPE 3801 and 3802 grinding wheels with vitrified bond are manufactured on the basis of brown aluminium oxide (95A).
3801 - D/J x T/U x H - nr rys
3802 - D/J x T/U x H - nr rys
Examples of labeling:
3801 - 330/245x31/16x203-95A60O7VTE10-PP/3801/193
3802 - 320/240x40/24x19-95A46L5VTE10-50-PP/3802/194
3801 - 330/245x31/16x203-95A60O7VTE10-PP/3801/193
3802 - 320/240x40/24x19-95A46L5VTE10-50-PP/3802/194
Download
Parameters of the offered grinding wheels of the presented type
| TYPE 3801 | |||||||
| Dimensions [mm] | No. pic. | ||||||
| D | J | T | U | H | E | D1 | |
| 250 | 173 | 29 | 15 | 140 | 5 | 239 | PP/3801/007F |
| 330 | 245 | 31 | 16 | 203 | 6 | 320 | PP/3801/193 |
| TYPE 3802 | ||||||
| Dimensions [mm] | No. pic. | |||||
| D | J | T | U | H | D1 | |
| 239 | 170 | 40 | 22 | 25 | 120 | PP/3802/012 |
| 320 | 240 | 40 | 24 | 19 | 172 | PP/3802/194 |
*) Other parameters (dimensions, profiles) available according to individual arrangements.
Examples of manufactured grinding wheels of the presented type

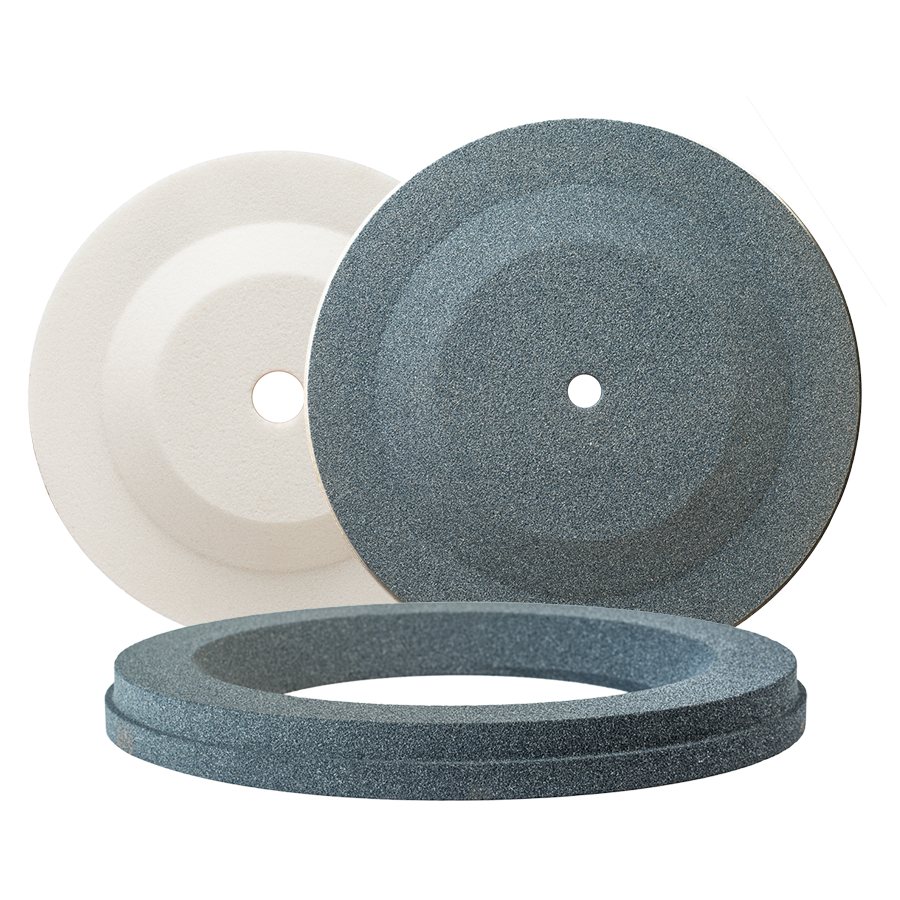

TYPE 3801 and 3802 grinding wheels set for use in vegetable pulp mills.
|
95A |
||||
|
Code |
Dimensions [mm] |
Characteristics |
Speed [m/s] |
In a box |
|
3801 |
250/173x29/15x140 |
95A46O5VTE10 |
- |
- |
|
3802 |
239/170x40/22/x25 |
95A46O5VTE10 |
40 |
- |
Prezentowane narzędzia ścierne ANDRE ABRASIVE ARTICLES wyprodukowano w oparciu o wiedzę i wieloletnie doświadczenie współpracy z Klientami.
Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.
Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.
ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
