TYPE 9010Y

RECTANGULAR DOUBLE-LAYER SHARPENING STONES

Rectangular sharpening stones TYPE 9010Y are designed for manual surface smoothing, tool sharpening, edge breaking, deburring of work pieces made of steel, cast iron, cast steel, non-ferrous metals, ceramics, sintered carbides and others.

ANDRE TYPE 9010Y vitrified-bonded sharpening stones can be produced in various electro-corundum or silicon carbide combinations due to their double-layer construction. The advantage of this type of tool is that two different grit sizes and hardnesses can be combined in a single sharpening stone.

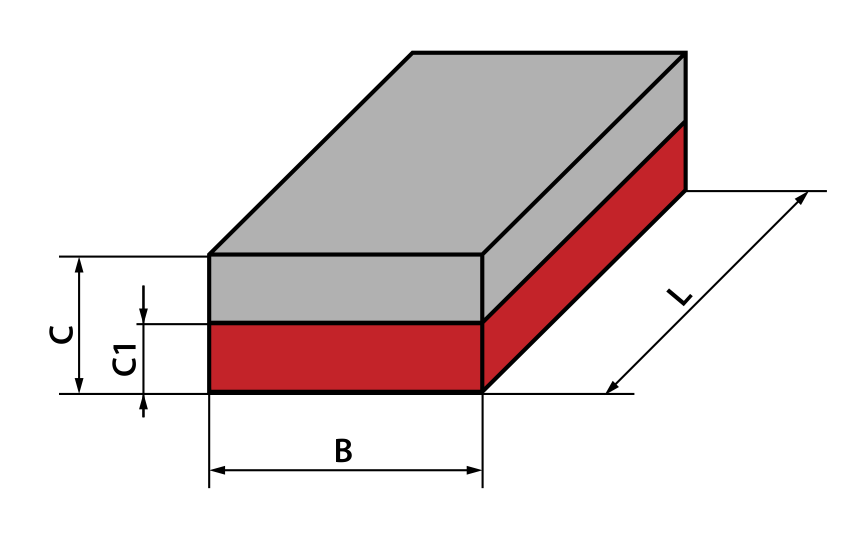

9010Y - B x C/C1 x L

Examples of labeling:
9010Y - 35x20/10x150-98C120/99C150J6VC01

Download

DIMENSION TABLE

Parameters of the offered abrasive tools of the presented type

TYPE 9010Y
Dimensions [mm]
B	C	C1	L
25	10 - 25	0,5 C	200
35	10 - 25	0,5 C	150
40	10 - 25	0,5 C	200
50	10 - 25	0,5 C	200

*) Other parameters available according to individual arrangements.

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
