Sharpening of turning tools (lathe knives)

An important requirement during lathe knife sharpening operations, both those made of HSS and carbide, is high precision of abrasive tools, repeatability of the process and high efficiency. The solutions proposed by ANDRE make it possible to achieve high quality of ground surfaces while ensuring high performance of the grinding wheels used.
For these operations, ANDRE offers a wide range of conventional and superhard grinding wheels with appropriately matched characteristics.

GRINDING OF HSS LATHE KNIVES

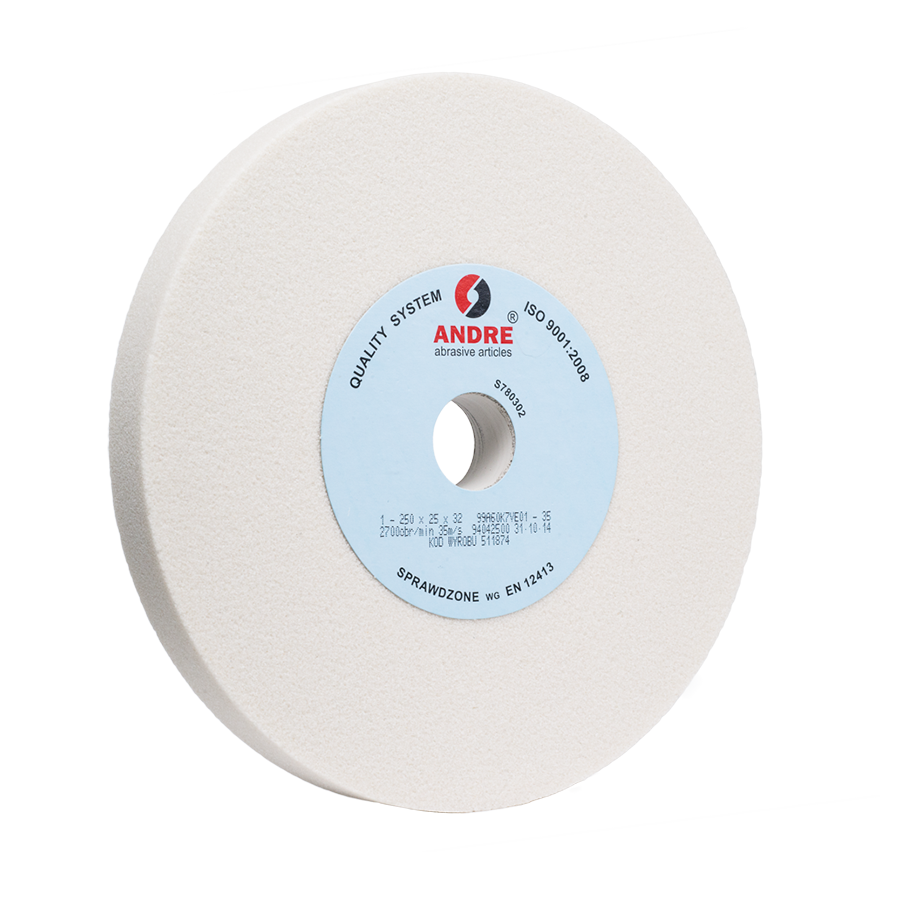

| TYPE 1

1 - D x T x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1	250x25x32	99A80L6VTE10	35
1	250x50x51	99A60K7VE01	35

[*] Ask the Sales Department about the full offer and available characteristics.

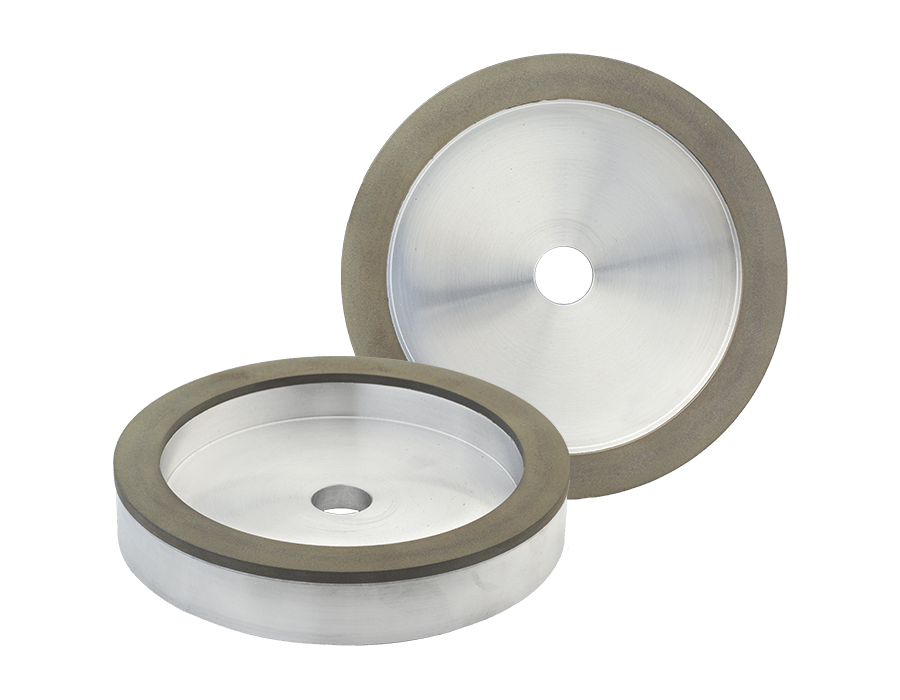

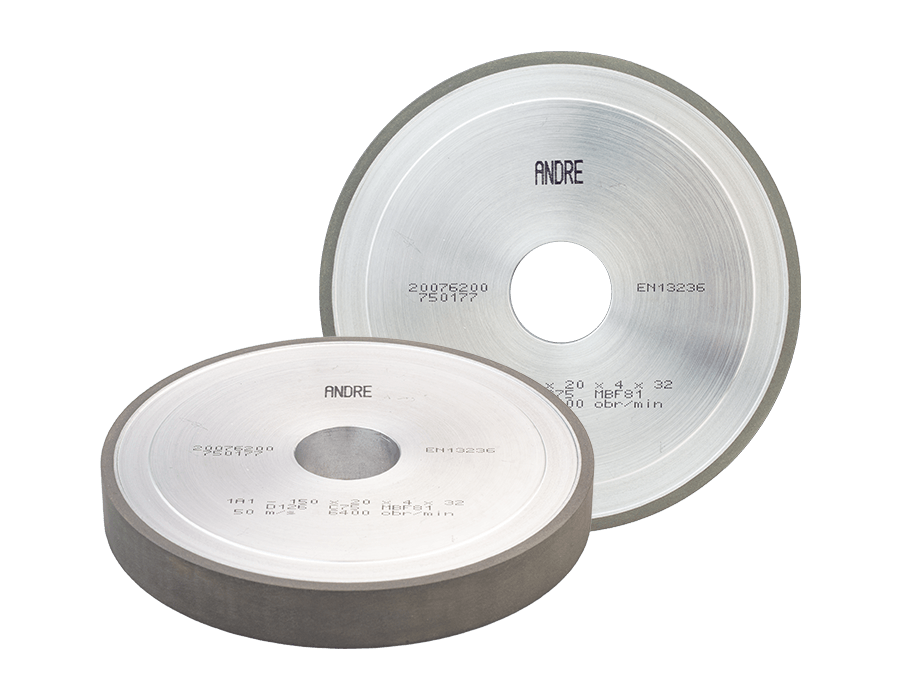

| TYPE 1A1 | TYPE 6A2

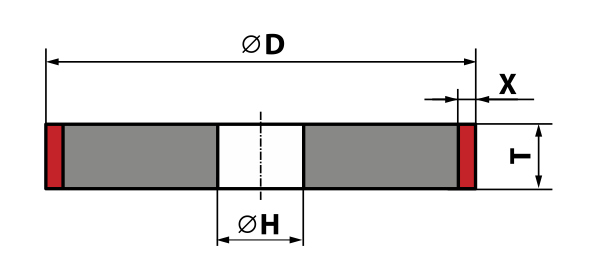

1A1 - D x T x X x H

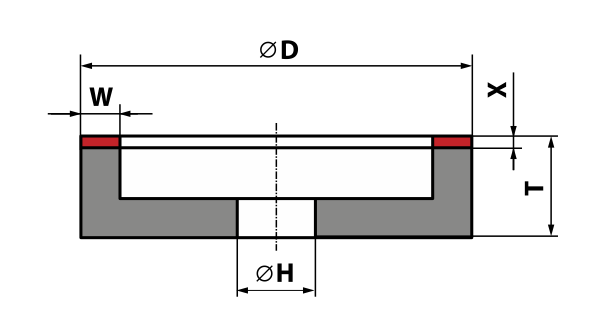

6A2 - D x T-X x W x X x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics
1A1	150x15x4x20	B126V180LBG2
1A1	200x20x4x32	B126V180LBG2
6A2	125x23x15x4x32	B107V180GBL2
6A2	150x23x15x4x32	B107V180GBL2

[*] Ask the Sales Department about the full offer and available characteristics.

GRINDING OF CARBIDE LATHE KNIVES

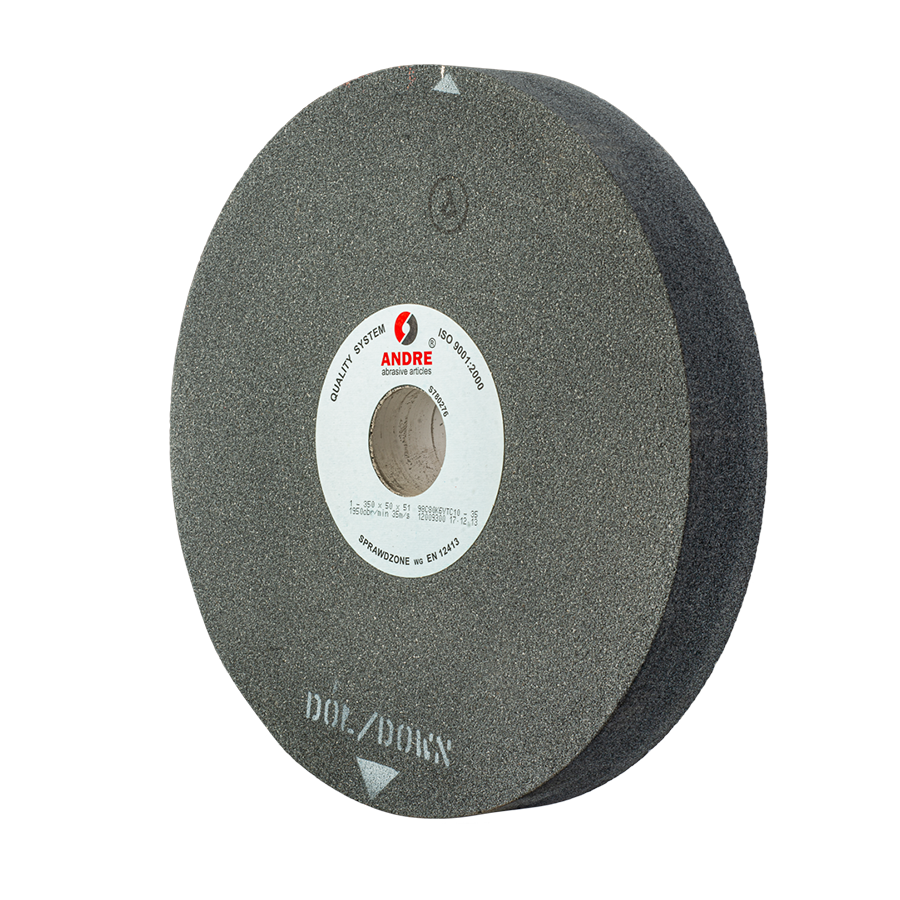

| TYPE 1

1 - D x T x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1	350x50x51	98C46K6VTC10	35
1	350x50x51	98C80K6VTC10	35

[*] Ask the Sales Department about the full offer and available characteristics.

| TYPE 1A1 | TYPE 6A2

1A1 - D x T x X x H

6A2 - D x T-X x W x X x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics
1A1	150x15x4x20	D126C75LBG2
1A1	200x20x4x32	D126C75LBG2
6A2	125x23x15x4x32	D107C75GBL2
6A2	150x23x15x4x32	D107C75GBL2

[*] Ask the Sales Department about the full offer and available characteristics.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
