TYPE 42

REINFORCED DEPRESSED CENTRE CUTTING-OFF WHEELS

TYPE 42 reinforced wheels are a numerous and popular group of universal and special abrasive tools for cutting through various materials. They are widely used at construction sites, steel construction plants, shipyards, mechanical engineering plants, steel mills, foundry and other industries, as well as in smaller workshops and tool shops. Depending on the size and requirements, they work with a variety of grinders - cutters: manual, stationary electric, pneumatic or petrol. These grinding wheels are mechanically reinforced, designed for operation at a speed of 80 [m/s]. For these grinding wheels, face grinding is not a permitted operation.

ANDRE TYPE 42 reinforced resin bonded wheels are produced on the basis of a specially developed composition of abrasive grains in combination with a refined system of active fillers.

42 - D x U x H

Examples of labeling:

42 - 125x2,5x22,23-95A30RBF-80 INOX

Download

A line of professional solutions that meets the condition of a good efficient product at a good price. Dedicated definitely for professional applications.

VERSION STANDARD

For cutting-off steel, cast iron and cast steel materials; especially objects with larger solid cross-sectional areas: round, rectangular types of rods, flat bars, as well as sheet metal, casting overmolds.

STANDARD
Dimensions [mm]	Charakteristics	RPM
115 × 2,5 × 22,23	95A30RBF	13300
115 × 3,0 × 22,23	95A30RBF	13300
125 × 2,5 × 22,23	95A30RBF	12250
125 × 3,0 × 22,23	95A30RBF	12250
150 × 3,0 × 22,23	95A24RBF	10200
180 × 3,0 × 22,23	95A24RBF	8500
230 × 2,5 × 22,23	95A24RBF	6650
230 × 3,0 × 22,23	95A24RBF	6650

*) Other parameters available according to individual arrangements.

VERSION EXTRA

Enhanced hardness. For cutting-off steel, cast iron and cast steel materials.

EXTRA
Dimensions [mm]	Charakteristics	RPM
125 × 2,5 × 22,23	95A30TBF	12250
125 × 3,0 × 22,23	95A30TBF	12250
150 × 3,0 × 22,23	95A24TBF	10200
180 × 3,0 × 22,23	95A24TBF	8500
230 × 2,0 × 22,23	95A36TBF	6650
230 × 3,0 × 22,23	95A24TBF	6650

*) Other parameters available according to individual arrangements.

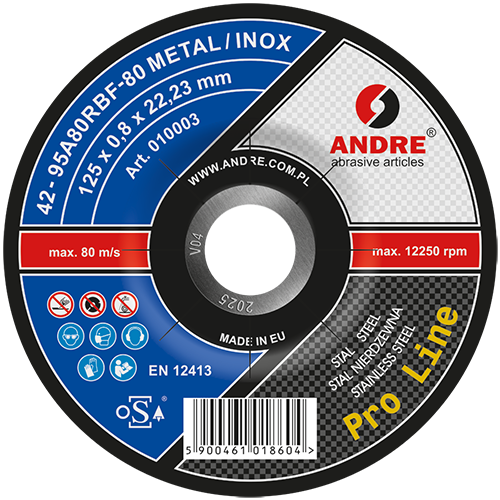

VERSION METAL/INOX

Thin grinding wheels for efficient, precision cutting of universal, structural, tool, stainless and acid-resistant steels. They are free of iron, sulfur and chlorine.

METAL/INOX
Dimensions [mm]	Charakteristics	RPM
125 × 0,8 × 22,23	95A80RBF	12250
230 × 2,0 × 22,23	95A36RBF	6650

*) Other parameters available according to individual arrangements.

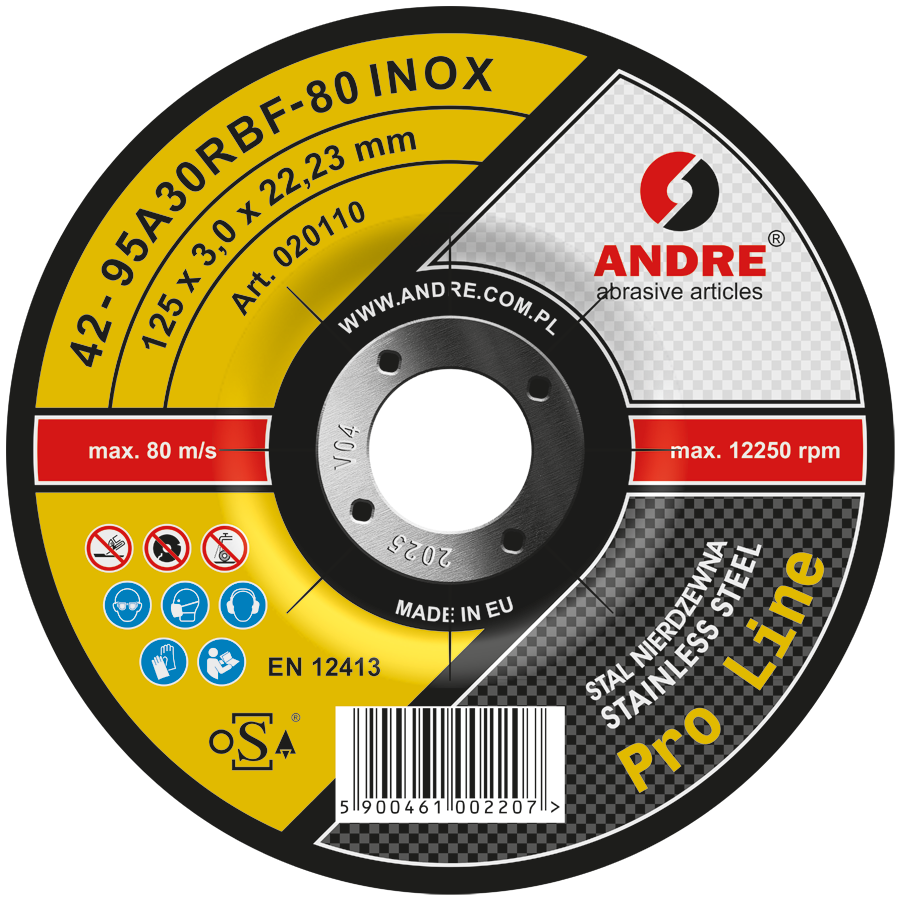

VERSION INOX

For cutting stainless and acid-resistant steels. In a thin version for efficient precision cutting and in a typical version for general use. They are free of iron, sulfur and chlorine.

INOX
Dimensions [mm]	Charakteristics	RPM
125 × 0,8 × 22,23	95A80RBF	8500
125 × 3,0 × 22,23	95A30RBF	6650

*) Other parameters available according to individual arrangements.

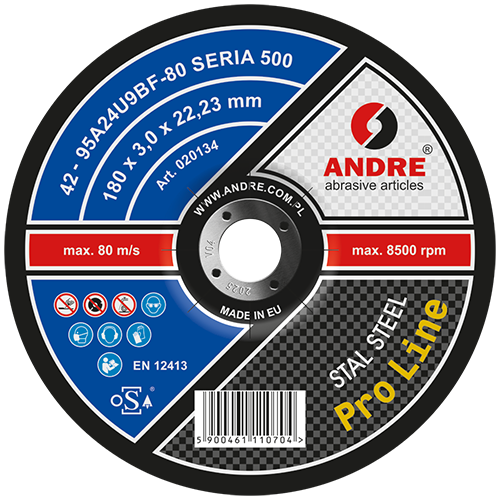

VERSION SERIA 500

Special grinding wheels for cutting steel objects, and especially for efficient cutting of rubber conveyor belts with steel cables or steel cables themselves.

SERIA 500
Dimensions [mm]	Charakteristics	RPM
180 × 3,0 × 22,23	95A24U9BF	12250
230 × 3,0 × 22,23	95A24U9BF	12250

*) Other parameters available according to individual arrangements.

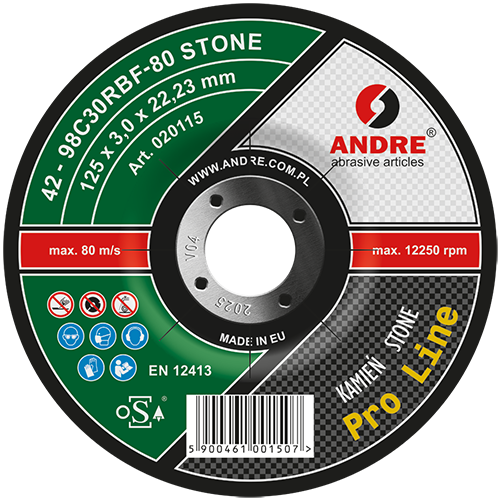

VERSION STONE

For cutting through concrete, reinforced concrete, terrazzo, natural and artificial stones, ceramic materials, as well as hard, brittle cast iron.

STONE
Dimensions [mm]	Charakteristics	RPM
115 × 3,0 × 22,23	98C30RBF	13300
125 × 3,0 × 22,23	98C30RBF	12250
230 × 3,0 × 22,23	98C24RBF	6650

*) Other parameters available according to individual arrangements.

A line of economic solutions that meets the condition of a good price for the customer, while providing good performance and a high safety factor.

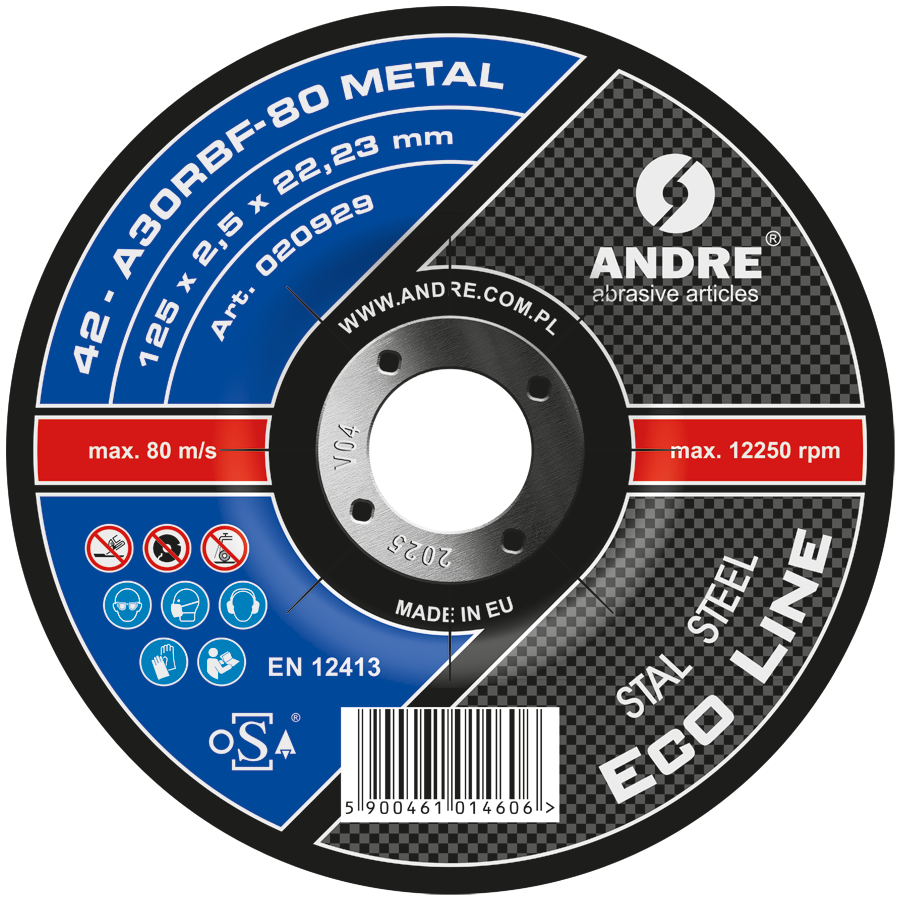

VERSION METAL

Grinding wheels intended for cutting-off operations that do not require high utility values. Application - similar to the Pro Line product line Standard version.

METAL
Dimensions [mm]	Charakteristics	RPM
115 × 3,0 × 22,23	A30RBF	13300
125 × 2,5 × 22,23	A30RBF	12250
125 × 3,0 × 22,23	A30RBF	12250
180 × 3,0 × 22,23	A24RBF	8500
230 × 2,0 × 22,23	A36RBF	6650
230 × 3,0 × 22,23	A24RBF	6650

*) Other parameters available according to individual arrangements.

Application table - TYPE 41 and TYPE 42

Application

TYPE 41 / TYPE 42

ECO LINE

PRO LINE

MASTER LINE

METAL

METAL/INOX

STANDARD

EXTRA

METAL/INOX

INOX

ALUMINIUM

SERIA 500

RAIL

STONE

METAL

METAL/INOX

Steel - general purpose

Constructional steel

- large cross-sectional areas

- small cross-sectional areas

- thin sheets, pipes, thinwalled profiles

- operating platform grids

Tool steel

Stainless and acid

resistant steel

- general applications

- thin sheets, pipes, thinwalled profiles

Railway rails

Steel wire ropes

Chilled cast iron

Ductile cast iron

Cast steel

Aluminium and its alloys

Non-ferrous metals

Concrete, terrazzo

Stone, ceramics

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
