Grinding

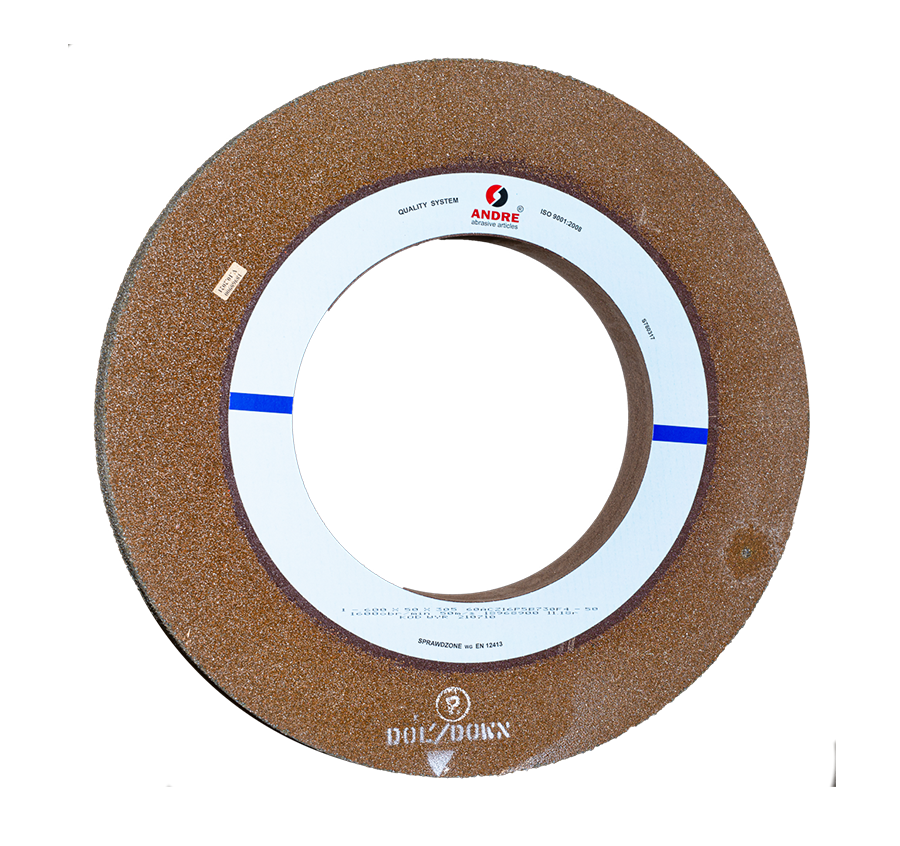

GRINDING OF LIGHT CASTINGS - STATIONARY MACHINES

Stationary grinding machines in foundries are used to process light weight castings. In this operation workpiece is manually guided by the operator.

ANDRE has a range of grinding wheels for the above applications. Our experience allows us to propose technical characteristics of grinding wheels which ensure quick material removal and long life of the grinding wheel.

| TYPE 1

1 - D x T x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1	250x32x25,4	95A20P6B51	50
1	300x40x51	95A24P6B51F	50
1	350x50x127	95A24P6B51F1	50
1	400x50x127	95AY24Q5B51	50
1	500x60x127	ZRA12Q/R5B665F5	80
1	500x63x51	95A16O5B305F4	63
1	600x75x203	ZRA16Q5B665F5	80
1	762x80x305	ZRA14/16Q5B51F4	63

[*] Ask the Sales Department about the full offer and available characteristics.

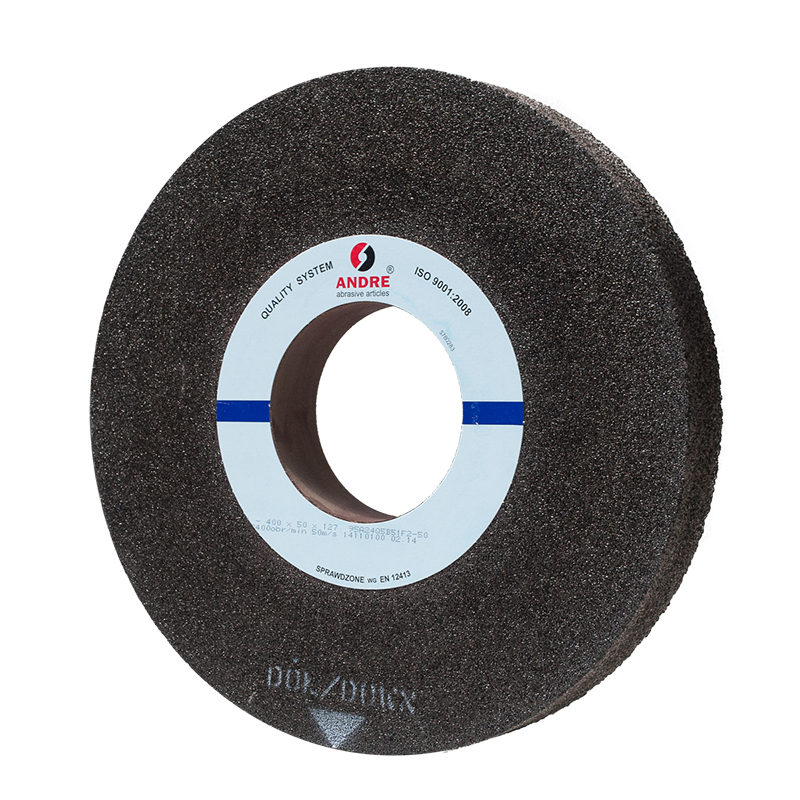

GRINDING OF HEAVY AND LARGE CASTINGS – SWING FRAME MACHINES AND MANIPULATORS

Swing frame machines and manipulators are used for grinding large-scale heavy parts.
ANDRE has a range of grinding wheels for the above applications. Our experience allows us to propose technical characteristics of grinding wheels which ensure quick material removal and long life of the grinding wheel.

| TYPE 1

1 - D x T x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1	250x32x25,4	95A20P6B51	50
1	300x40x51	95A24P6B51F	50
1	350x50x127	95A24P6B51F1	50
1	400x50x127	95AY24Q5B51	50
1	500x60x127	ZRA12Q/R5B665F5	80
1	500x63x51	95A16O5B305F4	63
1	600x75x203	ZRA16Q5B665F5	80
1	762x80x305	ZRA14/16Q5B51F4	63

[*] Ask the Sales Department about the full offer and available characteristics.

GRINDING OF HEAVY AND LARGE CASTINGS AND HARD-TO-REACH SURFACES – HAND-HELD MACHINES

Hand-held grinders are commonly used in foundries, especially in case of large and heavy castings, or in case of surfaces difficult to reach.

ANDRE offers wide range of abrasive products and we are ready to help in selection of appropriate product for every, even the most demanding grinding operation. Thanks to various shapes and dimensions of tools we offer, grinding of hard to reach surfaces will be easy now. The advantages of our grinding wheels are: user safety, high efficiency and affordable price.

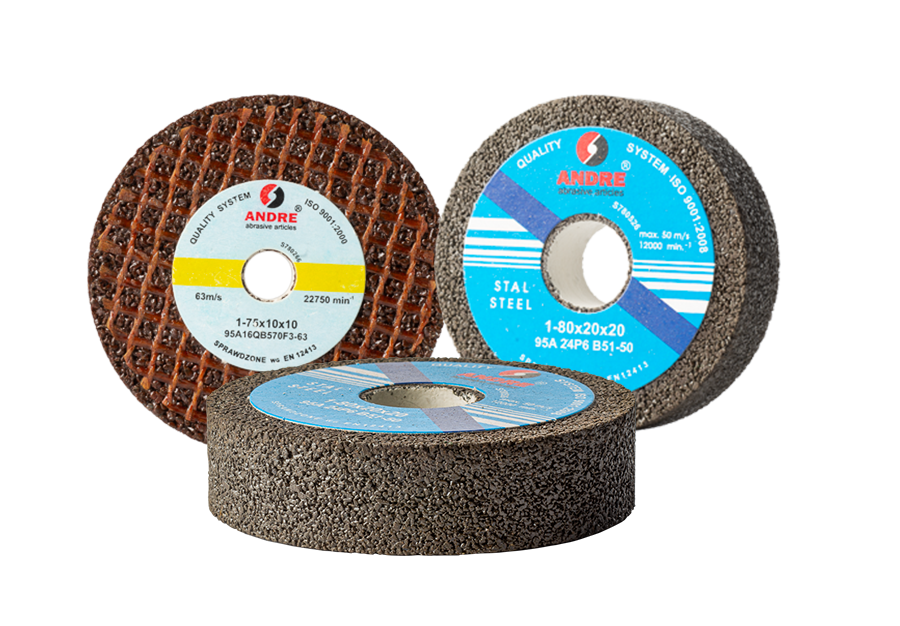

| TYPE 1

1 - D x T x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1	50x20x20	95A24R6B513	63
1	50x20x20	95A24QB	50
1	75x10x10	95A16QBF3	50
1	80x20x20	95A24P6B51	50
1	100x25x20	95A24P6B51	50
1	125x25x20	95A24P6B51	50
1	150x32x20	95A24P6B51	50
1	200x32x20	95A24R5B51	50

[*] Ask the Sales Department about the full offer and available characteristics.

| TYPE 27

27 - D x U x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Charakteristics	Version	Speed [m/s]

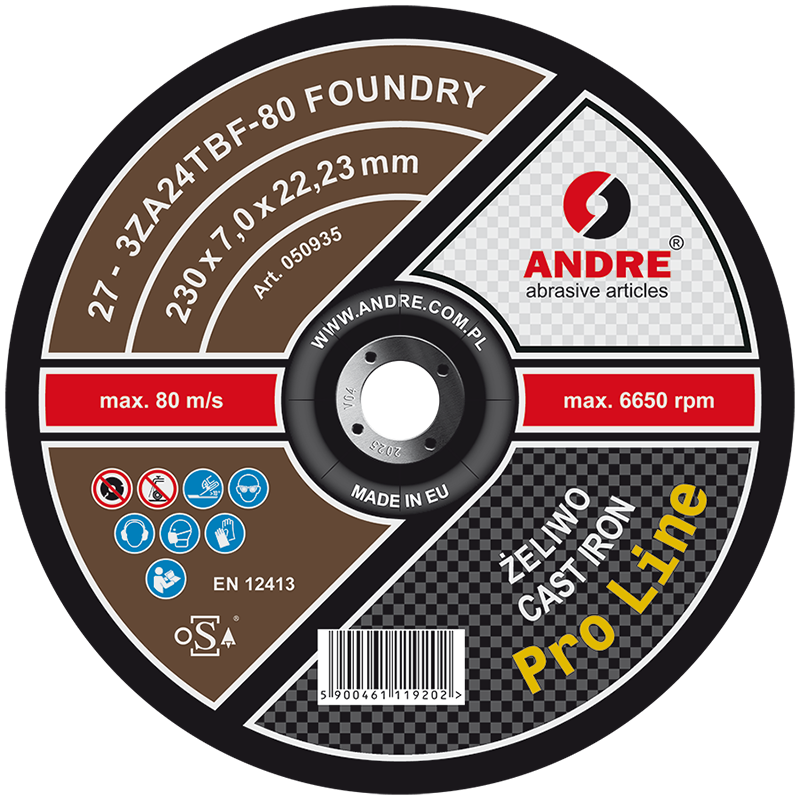

27	230x7,0x22,23	3ZA24RBF	FOUNDRY	80
27	230x8,0x22,23	95A24QBF	STANDARD	80
27	230x8,0x22,23	95A24TBF	EXTRA	80
27	230x8,0x22,23	98C24QBF	STONE	80

[*] Ask the Sales Department about the full offer and available characteristics.

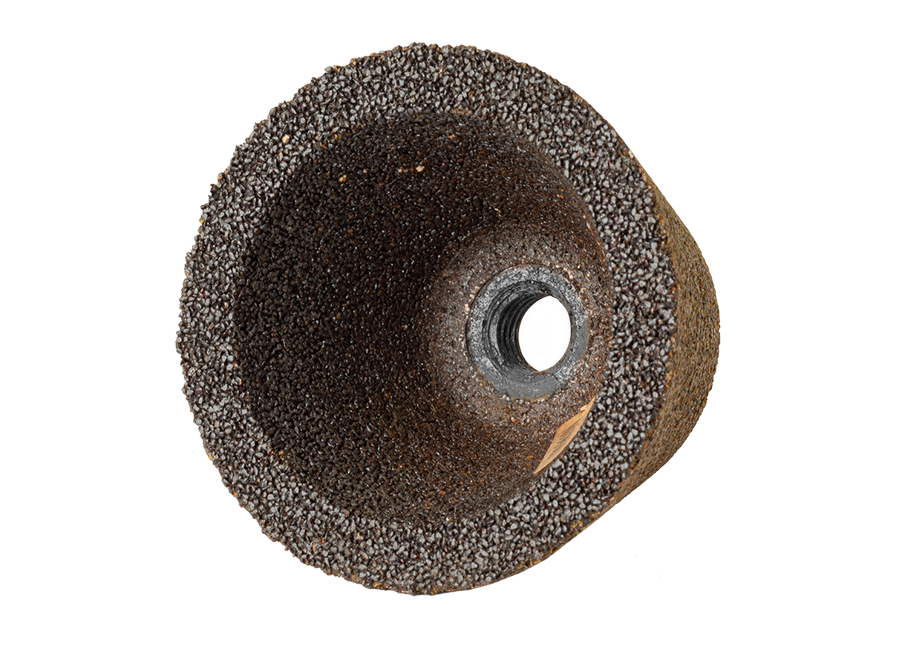

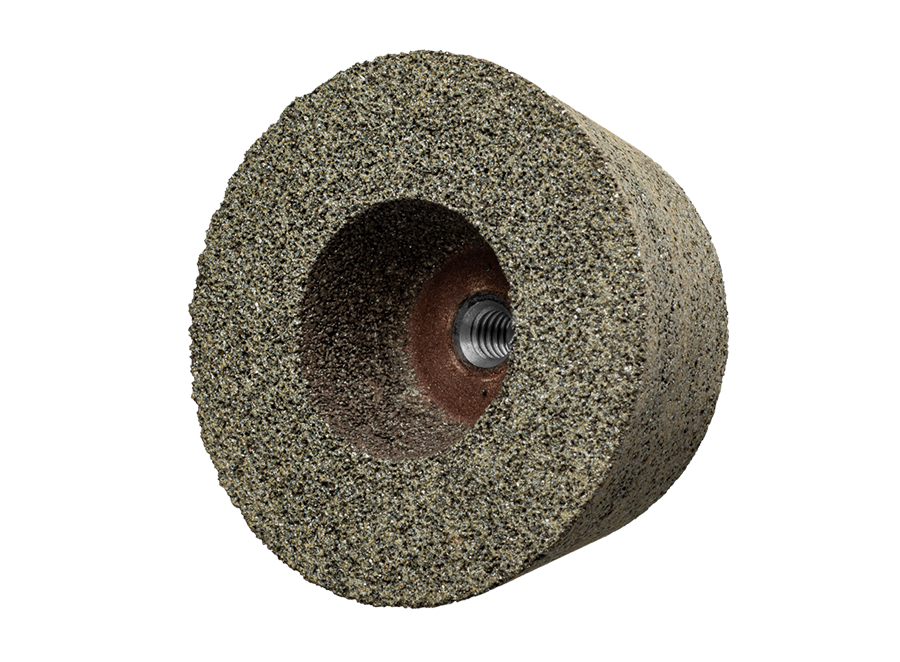

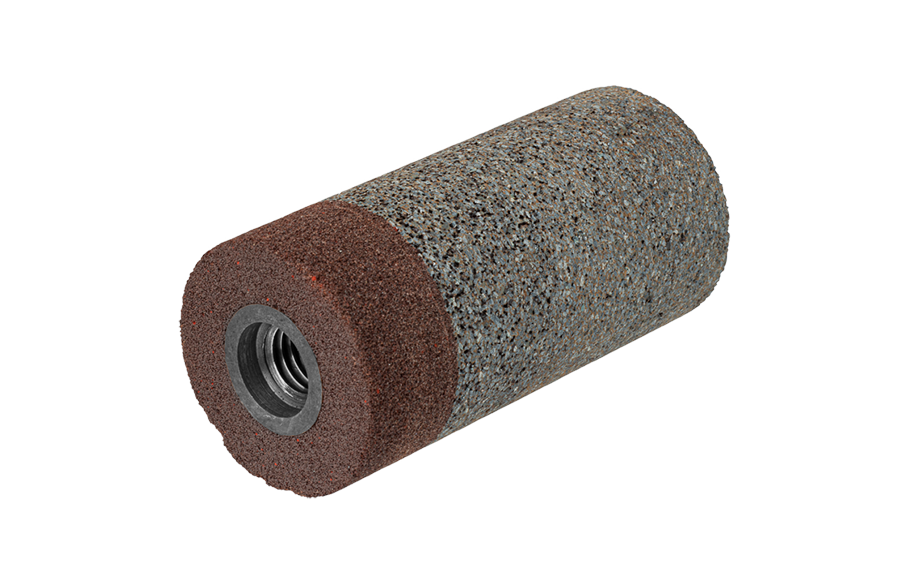

| TYPE 11 | TYPE 1112 | TYPE 1114 | TYPE 18 | TYPE 18R

11 - D/J x T x H - W...E...K

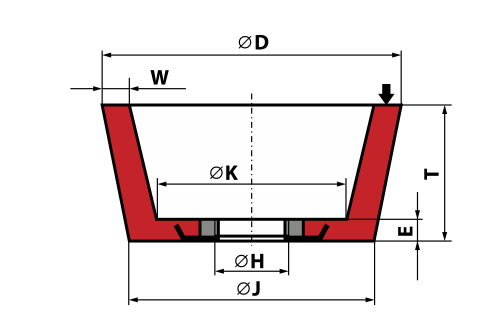

1112 - D/J x T x H - W...E...K

1114 - D/J x T x H - W...E...K

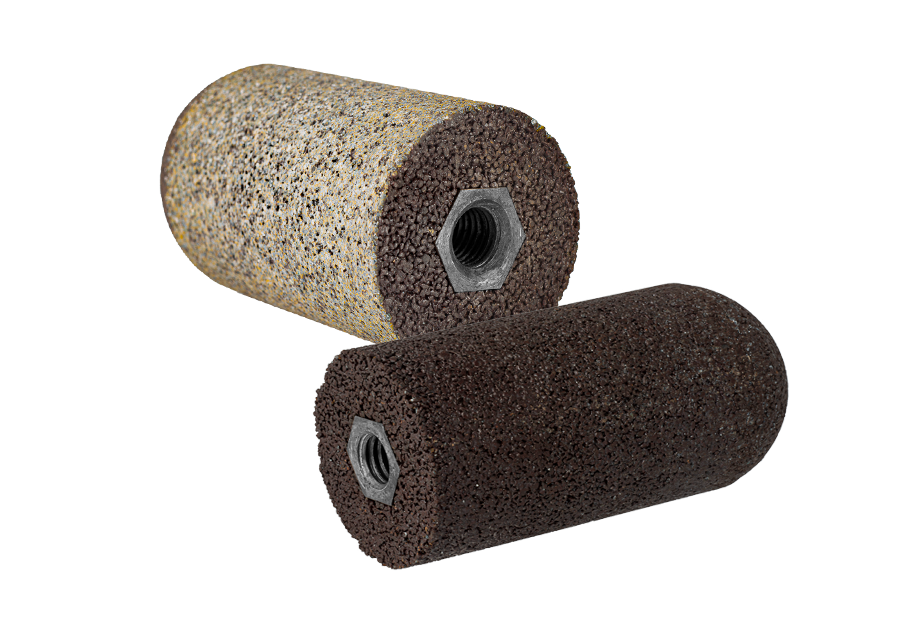

18 - D x T - H x L

18R - D x T - H x L

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
11	110/90x55x22,2-W20E12K48	95A16QB97	50
11	110/90x55x22,2-W20E12K48	98C16NB97	50
1112	125/100x50xM14-W25E20K50	95A16QB97	50
1114	100/80x50xM14-W20E20K45	98C46QB630	50
18	32x51-3/8”-16x20	98C24Q6B97	50
18	50x65-5/8”x20	95A16TB420	50
18R	50x75-5/8”UNCx25	98C20R6B97	50
18R	50x100-5/8”UNCx25	98C20Q6B97	50

[*] Ask the Sales Department about the full offer and available characteristics.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
