Cutting-off

Various groups of abrasive tools are used in casting cutting-off operations.

Cutting-off wheels types 41 and 42 are commonly used in the foundry industry. Depending on the size and requirements, they work with a variety of grinding – cutting-off machines, including hand-held, stationary, swing frame. These grinding wheels are mechanically reinforced and designed for operation at speeds of 80 [m/s] and 100 [m/s] (part of the type 41 range with special reinforcement). The grinding wheels are available in three product lines: ECO LINE, PRO LINE (versions: STANDARD, EXTRA, METAL/ INOX, STONE, FOUNDRY) and MASTER LINE.

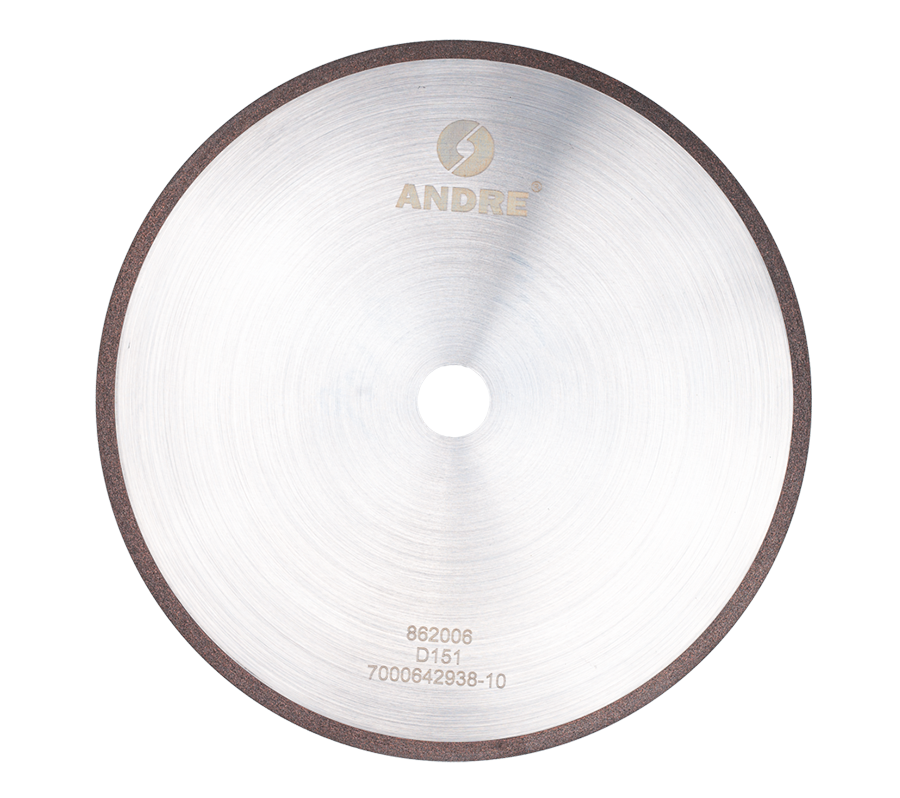

ANDRE also offers superhard type 1A1R electroplated wheels. These grinding wheels, designed for cutting-off iron castings, are characterized by exceptionally high performance and service life.

CUTTING-OFF CASTINGS

| TYPE 41

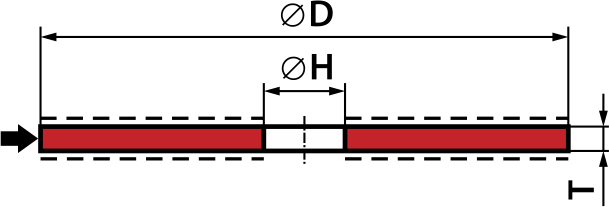

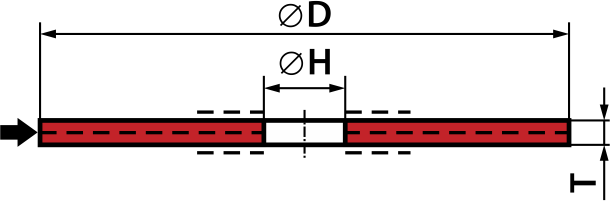

41 - D x T x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Charakteristics	Version	Speed [m/s]
41	230x2,0x22,23	95A36RBF	METAL/INOX	80

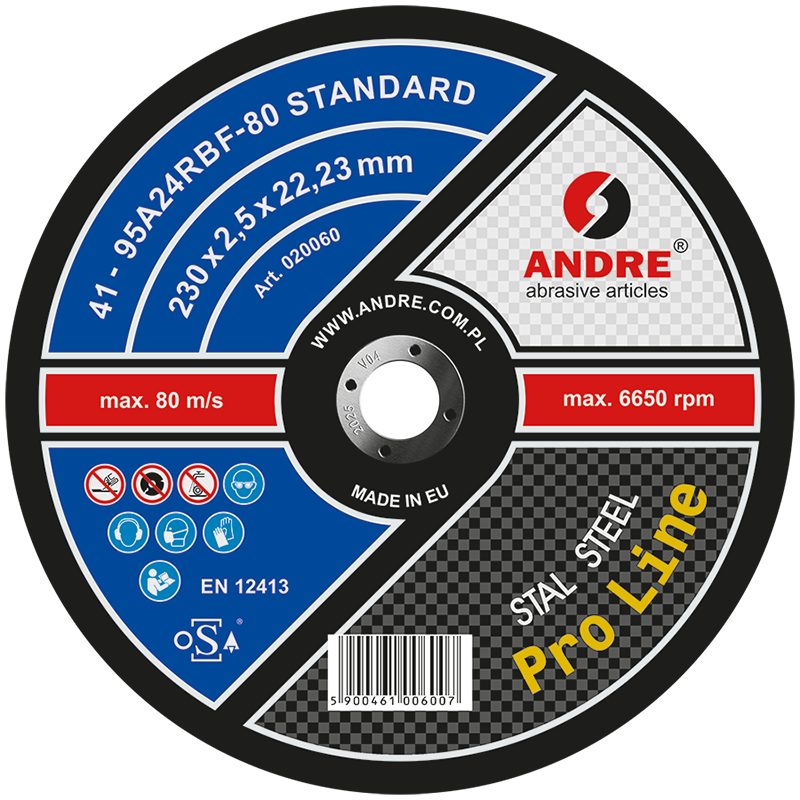

41	230x2,5x22,23	95A24RBF	STANDARD	80
41	300x3,0x40	AZ24U8BF	FOUNDRY	80
41	350x3,5x32	95A24TBF	EXTRA	80
41	400x4,0x32	95A24TBF	EXTRA	80
41	500x5,5x51	95A24RBSKF	STANDARD	80
41	500x5,6x40	ZRA24N7BF	FOUNDRY	80
41	600x6,5x60	97A24QBSKF	METAL/INOX	100

[*] Ask the Sales Department about the full offer and available characteristics.

| TYPE 42

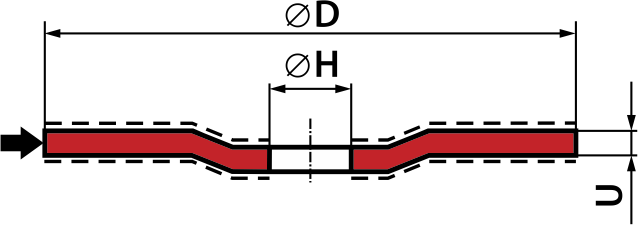

42 - D x U x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Version	Speed [m/s]

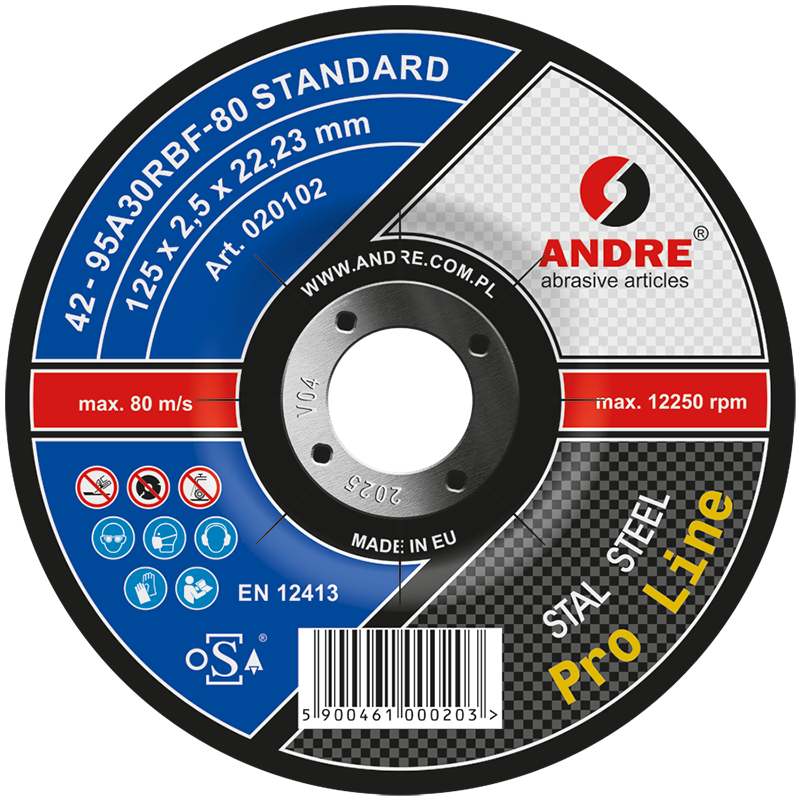

42	125x2,5x22,23	95A30RBF	STANDARD	80
42	125x0,8x22,23	95A80RBF	METAL/INOX	80
42	230x2,0x22,23	95A36RBF	METAL/INOX	80
42	230x3,0x22,23	95A24RBF	STANDARD	80
42	230x3,0x22,23	95A24TBF	EXTRA	80

[*] Ask the Sales Department about the full offer and available characteristics.

| TYPE 1A1R

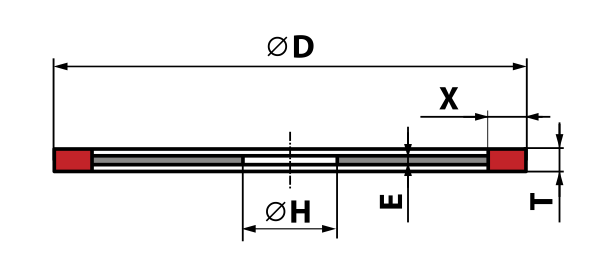

1A1R - D x T x X x E x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Profile
1A1R	8x20x60	-
1A1R	230x3,7x5x2,4	-

[*] Ask the Sales Department about the full offer and available characteristics.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
