TYPE 3101

RECTANGULAR SEGMENTS

Rectangular segments TYPE 3101 are designed for rough and fine grinding of flat surfaces of steel, cast steel, non-ferrous metals, cast iron. They are mostly used in the tool, machine and automotive industries on surface grinding machines with segment heads.

ANDRE TYPE 3101 segments with vitrified bond are manufactured on the basis of brown aluminium oxide (95A), white aluminium oxide (99A), black silicon carbide (98C) and green silicon carbide (99C), among others. For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

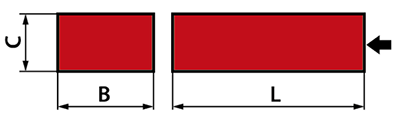

3101 - B x C x L

Examples of labeling:
3101 - 90x35x150-99A36H7VE01

Download

DIMENSION TABLE
PRODUCT EXAMPLES

Parameters of the offered abrasive tools of the presented type

TYPE 3101
Dimensions [mm]
B	C	L
20	50	200
25	25	150
30	8	100
50	70	100
51	51	101
70	5	200
80	25; 35; 40	150
90	35	150; 160
140	40	180
250	40; 50	200
250	40; 50	250

*) Other parameters available according to individual arrangements.

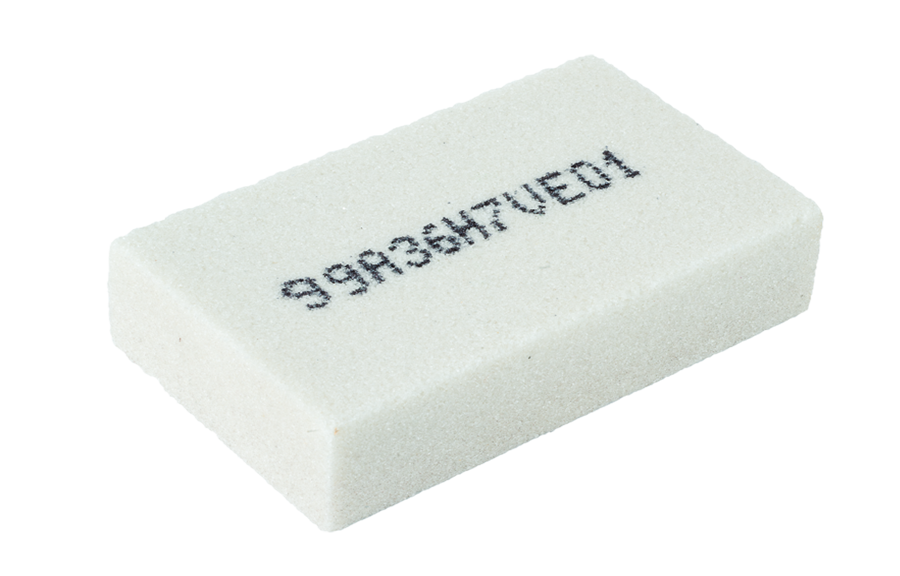

Examples of manufactured abrasive tools of the presented type

For rough and finish grinding of flat surfaces of steel, cast steel, non-ferrous metals, cast iron.

99A
Code	Dimensions [mm]	Characteristics	Speed [m/s]	In a box
540597	90 × 35 × 150	99A36H7VE01	-	30
