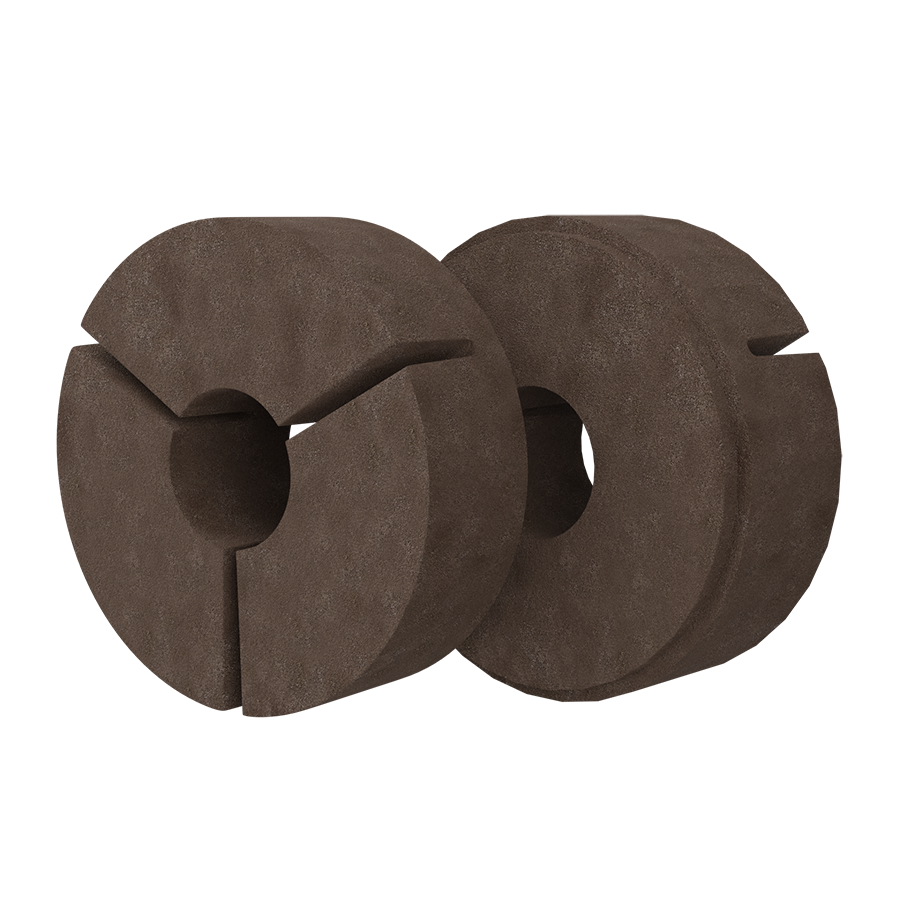

TYPE 3504
DISC WHEELS WITH SLOTS, RELIEVED ON ONE SIDE
Wheels TYPE 3504 are mounted (glued) to a backplate. They are appropriated mainly for grinding terrazzo, concrete, stone, ceramics, etc. in construction and stone industry.
They are used on wall grinders so-called " elbow", mobile, portable or frame grinders.
ANDRE TYPE 3504 resin bonded grinding wheels are mainly manufactured using black silicon carbide (98C) grain. For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

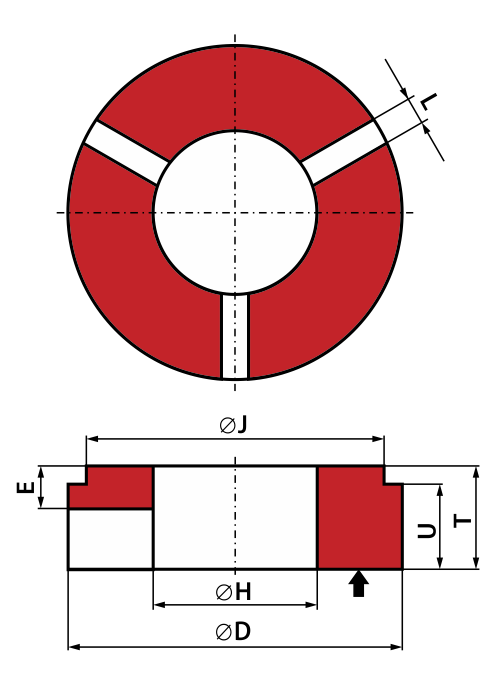

H < 0,67D
3504 - D × T/E × H - L…n…
Examples of labeling:
3504 - 300/230x80/55/35x160-L25n3-98C36N6B-35
3504 - 300/230x80/55/35x160-L25n3-98C36N6B-35
Download
Parameters of the offered grinding wheels of the presented type
| TYPE 3504 | |||||||
| Dimensions [mm] | Number of slots n for V° | ||||||
| D | T | H | J | U | E | L | |
| 300 | 80 | 160 | 230 | 55 | 35 | 25 | 3 x 120 |
*) Other parameters (dimensions, profiles) available according to individual arrangements.
The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.
Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.
Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.
ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
