TYPE 36

DISC WHEELS WITH THREADED INSERTS

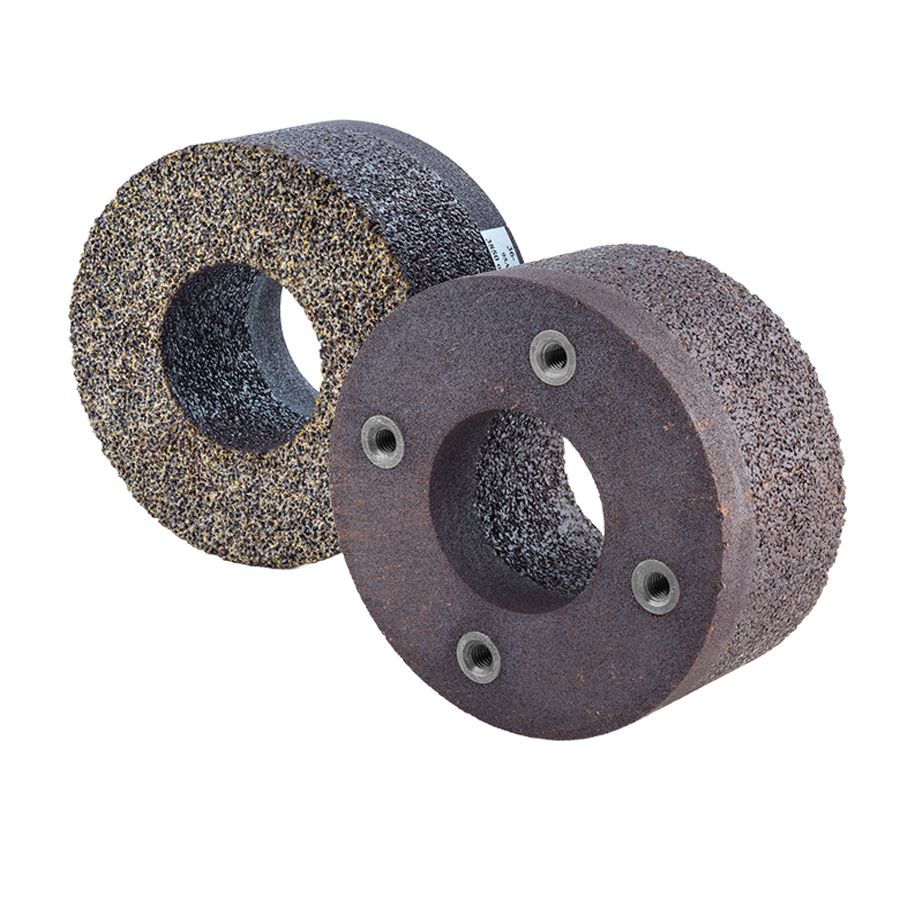

Grinding wheels with threaded inserts TYPE 36 are a group of wheels designed for working with face surface, individually or in pairs. The grinding wheels have threaded inserts on their non-working face for clamping on the grinder.
They are widely used in the bearing industry in railroads for grinding and regeneration of rails and in the automotive industry.

ANDRE TYPE 36 resin bonded grinding wheels are mainly manufactured on the basis of brown aluminium oxide (95A), white aluminium oxide (99A) and black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

H < 0,67D

36 - D × T × H - no. pic.

Examples of labeling:
36 - 125x60x55-95A16P6B97-50-PP/36/198

Download

DIMENSION TABLE
PRODUCT EXAMPLES

Parameters of the offered grinding wheels of the presented type

TYPE 36
Dimensions [mm]					Angle scale and number of thread inserts	No. pic.
D	T	H	X	Height of threaded insert	Angle scale and number of thread inserts	No. pic.
100	60	32	66	12	90° 4 x M8	PP/36/199
125	60	55	90			PP/36/198
150	50	56	90			PP/36/392
	72	56	90
	80	56	90
250	30	160	205		90° 4 x M10	PP/36/140
	63	100	180		60° 6 x M10	PP/36/120
	80	150	200	14	60° 6 x M10	PP/36/195
450	90	250	375	14	36° 10 x M10	PP/36/162
450	100	203	270 373	16	72° 5 x M10 36° 10 x M10	PP/36/209
500	150	305	431,8		30° 12 x M10	PP/36/065
585	65	10	133,4 285,8 381 508		120° 3 x M10 51°26’ 7 x M10 51°26’ 7 x M10 25°43’ 14 x M10	PP/36/024
585	65	260	381 508	14	51°26’ 7 x M10 25°43’ 14 x M10	PP/36/088
600	75	305	370,5 530,5	12	60° 6 x M16 x 1,5 30° 12 x M16 x 1,5	PP/36/069
	125
	130
750	40	350	440 640		36° 10 x M10 24° 15 x M10	PP/36/089
762	76,2	25,4	108 279,4 457,2 673,1	16	120° 3 x M10 45° 8 x M10 30° 12 x M10 22°30’ 16 x M10	PP/36/230

*) Other parameters (dimensions, profiles) available according to individual arrangements.

Examples of manufactured grinding wheels of the presented type

For rough grinding of steel and also for grinding cast iron.

95A
Code	Dimensions [mm]	Characteristics	Speed [m/s]	In a box
110449	125 × 60 × 55 4xM8	95A16PB97	25	8
