TYPE 5220

CONICAL MOUNTED POINTS

Ceramic bounded cylindrical-conical mounted points TYPE 5220 are designed for precise and rough grinding with hand grinders. They are used for machining cast iron, steel, cast steel workpieces. They work with straight pneumatic and electric hand grinders.

ANDRE TYPE 5220 grinding tools with vitrified bond are manufactured on the basis of white aluminium oxide (99A), pink aluminium oxide (CRA), black silicon carbide (98C) and green silicon carbide (99C), among others. For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

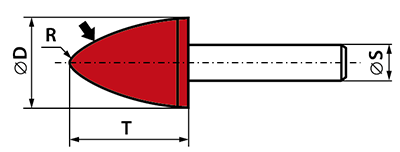

5220 - D x T x S - R

Examples of labeling:
5220-25x40x6-R6-CrA60M5VE01-40

Download

DIMENSION TABLE
PRODUCT EXAMPLES

Parameters of the offered abrasive tools of the presented type

TYPE 5220
Dimensions [mm]
D	T	S	R
16	40	6	3,5
25	40	6	6
30	30	6	7,5
40	40	6	10

*) Other parameters available according to individual arrangements.

Examples of manufactured abrasive tools of the presented type

Used in tool shops, press shops, in the automotive industry, for electric or pneumatic hand grinders.

CRA
Code	Dimensions [mm]	Characteristics	Speed [m/s]	In a box
559470	25x40x6 - R6	CRA60M5VE01	40	25

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
