TYPE 6

STRAIGHT CUP GRINDING WHEELS

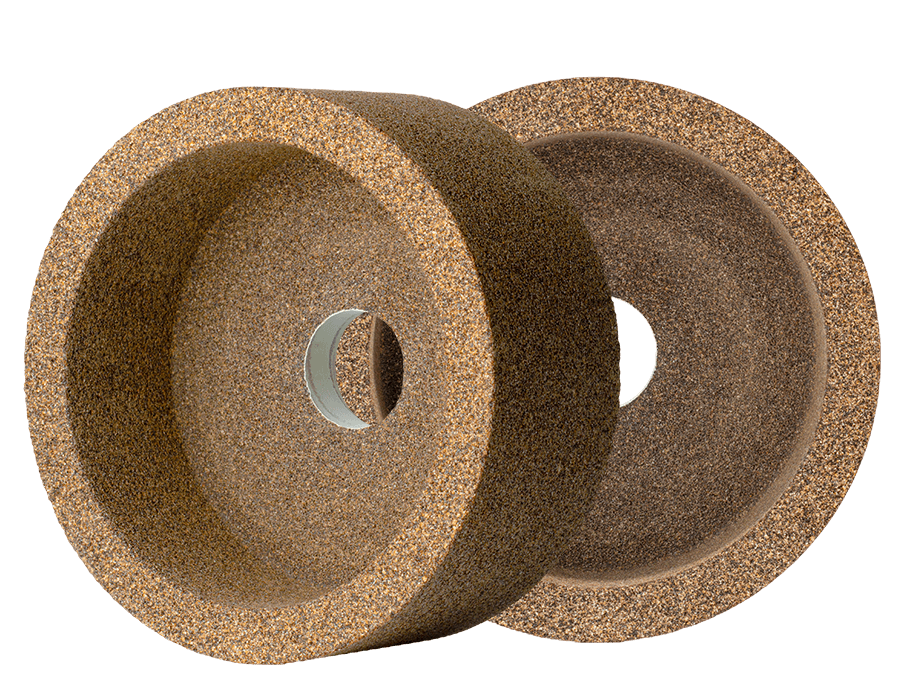

TYPE 6 grinding wheels are designed for grinding of flat and shaped surfaces. They work with the face surface. These grinding wheels are widely used in the production of guillotine knives, circular knives, secateurs.

ANDRE TYPE 6 grinding wheels with resin bond are manufactured on the basis of brown aluminium oxide (95A), white aluminium oxide (99A), pink aluminium oxide (CRA), black silicon carbide (98C) and green silicon carbide (99C), among others. For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

E ≥ 0,2T - for stationary grinders
E ≥ 0,25T - for handheld grinders

6 - D x T x H - W...E...

Examples of labeling:
6 - 150x63x32-W10E16-95A60J7B-35

Download

DIMENSION TABLE

Parameters of the offered grinding wheels of the presented type

TYPE 6
Dimensions [mm]
D	T	H	W	E
40	30	16	7	7
50	30	20	7	7
60	40	20	8	11
60	40	20	8	15
65	35	32	5	16
75	40	20	10	15
		20	17	15
		32	10	15
	50	20	20	20
80	60	32	15	12
90	40	20	15	15
90	40	32	13	15
95	35	20	27	15
100	38	22,2	10	10
	40	20	12	12
	40	32	6	10
	50	20	12	12
	85	20	25	20
	100	22,2	20	20
	110	22,2	20	25
125	50	20	20	15
		32	7	12
			20	15
	70		20	20
150	40	32	37	13
	50	51	37	14
	60	32	10	16
	63		10	16
			15	16
			15	19
	80		15	19
	80	51	15	19
200	100	51	27	22
		76	25	26
		76	27	22

*) Other parameters (dimensions, profiles) available according to individual arrangements.
