TYPE 1114
TAPER CUP GRINDING WHEELS WITH THREADED INSERT
TYPE 1114 taper cup wheels with threaded insert are intended for rough grinding of various materials. They work with the face surface, allowing a gentle creation of the desired ground surface profile.
Grinding wheels are suitable for use on portable vertical spindle grinders, angle grinders with pneumatic and electric drive and grinding units.
ANDRE TYPE 1114 resin bonded grinding wheels are manufactured mainly on the basis of brown aluminium oxide (95A) and black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.
E ≥ 0,2T - for stationary grinders
E ≥ 0,25T - for handheld grinders
E ≥ 0,25T - for handheld grinders

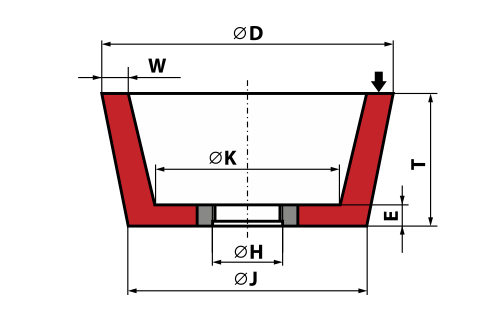

1114 - D/J x T x H - W...E...K...
Examples of labeling:
1114 - 100/80x50xM14-W20E20K45-98C46Q5B630-50
1114 - 100/80x50xM14-W20E20K45-98C46Q5B630-50
Download
Parameters of the offered grinding wheels of the presented type
|
TYPE 1114 |
||||||
|
Dimensions [mm] |
||||||
|
D |
J |
T |
H |
W |
E |
K |
|
80 |
54 |
50 |
M14 |
10 |
15 |
30 |
|
100 |
80 |
20 |
20 |
45 |
||
*) Other parameters (dimensions, profiles) available according to individual arrangements.
Examples of manufactured grinding wheels of the presented type
For rough grinding of steel, cast iron and steel materials, e.g.: joints of steel structures, castings, railroad rails.
|
95A |
||||
|
Code |
Dimensions [mm] |
Characteristics |
Speed [m/s] |
In a box |
|
130722 |
80/54 × 50 × M14 - W10E12K30 |
95A24Q6B97 |
50 |
8 |
For rough grinding of steel, cast iron and steel materials, e.g.: joints of steel structures, castings, railroad rails.
|
98C |
||||
|
Code |
Wymiary [mm] |
Characteristics |
Speed [m/s] |
In a box |
|
130063 |
100/80 × 50 × M14 - W20E20K45 |
98C46Q5B630 |
50 |
8 |
The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.
Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.
Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.
ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
