TYPE 41

REINFORCED FLAT CUTTING-OFF WHEELS

TYPE 41 reinforced wheels are a numerous and popular group of universal and special abrasive tools for cutting-off various materials. These grinding wheels have a special reinforcement that allows those with larger diameters to operate at higher peripheral speeds than TYPE 42 tools. TYPE 41 wheels up to a diameter 230 mm can only operate at speeds up to 80 [m/s], but from a diameter of 300 mm also 100 [m/s] versions are available. For these grinding wheels, face grinding is not a permitted operation.

ANDRE TYPE 41 reinforced resin bonded cutting-off wheels are produced on the basis of a specially developed composition of abrasive grains in combination with a refined system of active fillers.

41 - D x T x H

Examples of labeling:

41 - 125x1,6x22,23-95A46RBF-80 METAL/INOX

Download

A line of professional solutions that meets the condition of a good efficient product at a good price. Dedicated definitely for professional applications.

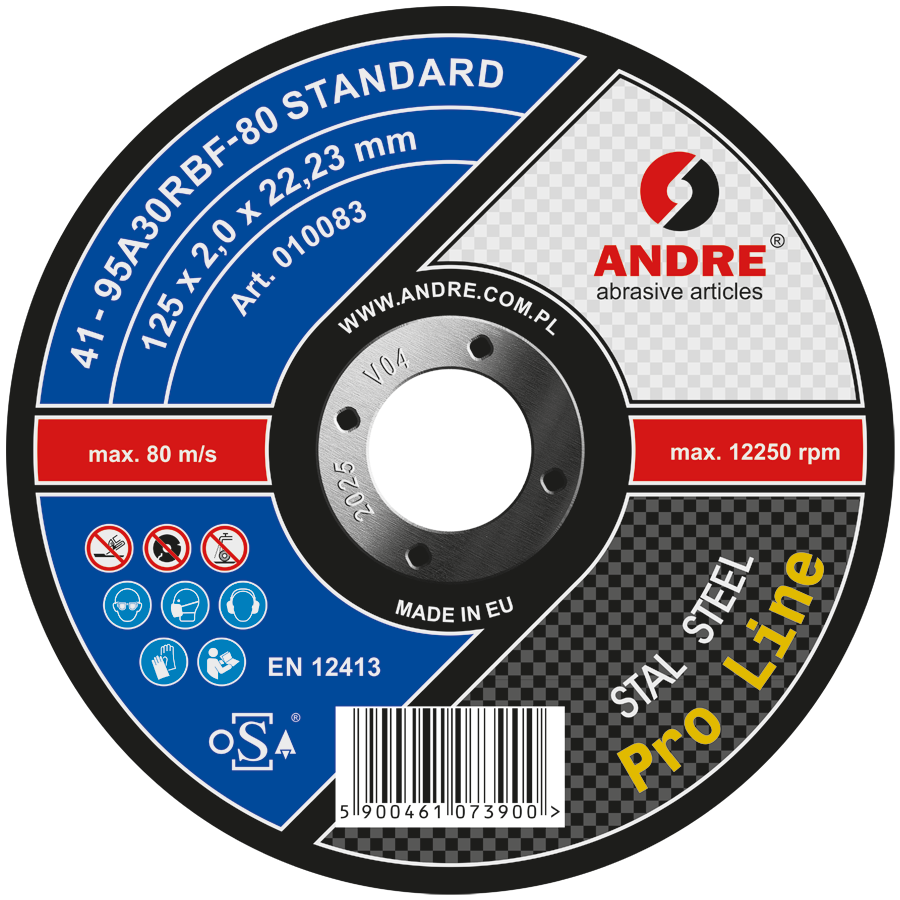

VERSION STANDARD

For cutting-off steel, cast iron and cast steel materials; especially objects with larger solid cross-sectional areas: round, rectangular types of rods, flat bars, as well as sheet metal, casting overmolds.

STANDARD
Dimensions [mm]	Charakteristics	RPM
115 × 2,5 × 22,23	95A30RBF	13300
125 × 2,0 × 22,23	95A30RBF	12250
125 × 2,5 × 22,23	95A30RBF	12250
125 × 3,0 × 22,23	95A30RBF	12250
150 × 2,5 × 22,23	95A24RBF	10200
180 × 2,5 × 22,23	95A24RBF	8500
230 × 2,5 × 22,23	95A24RBF	6650
230 × 3,0 × 22,23	95A24RBF	6650
300 × 3,0 × 32	95A24RBF	5100
350 × 3,5 × 32	95A24RBF	4400
400 × 4,0 × 32	95A24RBF	3850
400 × 4,5 × 32	95A24BSKF	3850
500 × 5,5 × 51	95A24BSKF	3100
600 × 7,0 × 76	95A24RBF	2550

*) Other parameters available according to individual arrangements.

VERSION EXTRA

Enhanced hardness. For cutting-off steel, cast iron and cast steel materials; especially thin-walled objects: pipes, profiles, sheets, bars, sections.

EXTRA
Dimensions [mm]	Charakteristics	RPM
125 × 2,5 × 22,23	95A30TBF	12250
150 × 2,5 × 22,23	95A24TBF	10200
230 × 2,0 × 22,23	95A36TBF	6650
230 × 2,5 × 22,23	95A24TBF	6650
230 × 3,0 × 22,23	95A24TBF	6650
300 × 3,0 × 32	95A24TBF	5100
350 × 3,5 × 32	95A24TBF	4400
400 × 4,0 × 32	95A24TBF	3850
400 × 4,5 × 25,4	95A24TBSKF	3850

*) Other parameters available according to individual arrangements.

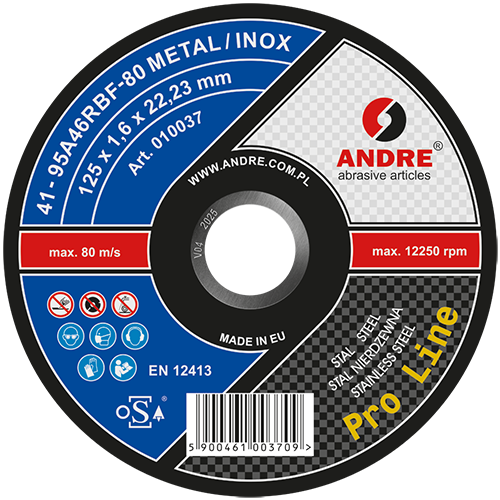

VERSION METAL/INOX

Thin grinding wheels for efficient, precision cutting of universal, structural, tool, stainless and acid-resistant steels. They are free of iron, sulfur and chlorine.

METAL/INOX
Dimensions [mm]	Charakteristics	RPM
115 × 1,0 × 22,23	95A60RBF	13300
115 × 1,6 × 22,23	95A46RBF	13300
125 × 1,0 × 22,23	95A60RBF	12250
125 × 1,6 × 22,23	95A46RBF	12250
125 × 2,0 × 22,23	95A30RBF	12250
150 × 1,5 × 22,23	95A60RBF	10200
150 × 1,7 × 22,23	95A46RBF	10200
180 × 2,0 × 22,23	95A36RBF	8500
230 × 2,0 × 22,23	95A36RBF	6650

*) Other parameters available according to individual arrangements.

VERSION METAL/INOX SMALL LABEL

Thin grinding wheels with active side surfaces for efficient, precise cutting of universal, structural, tool, stainless and acid-resistant steels. They are characterized by increased cutting efficiency compared to standard thin grinding wheels They are free of iron, sulfur and chlorine.

METAL/INOX SMALL LABEL
Dimensions [mm]	Charakteristics	RPM
125 × 1,0 × 22,23	95A60RBF	12250

*) Other parameters available according to individual arrangements.

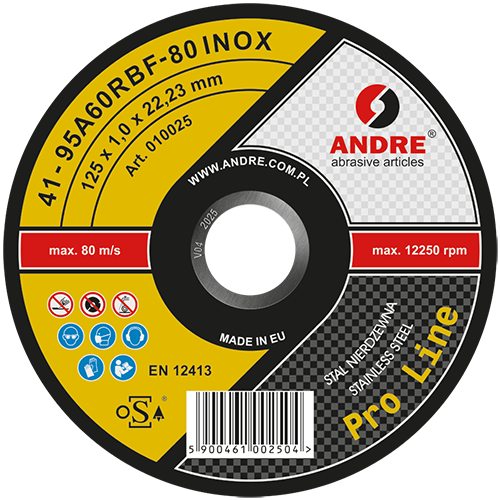

VERSION INOX

For cutting stainless and acid-resistant steels. In a thin version for efficient precision cutting and in a typical version for general use. They are free of iron, sulfur and chlorine.

INOX
Dimensions [mm]	Charakteristics	RPM
115 × 1,0 × 22,23	95A60RBF	13300
125 × 1,0 × 22,23	95A60RBF	12250
125 × 1,6 × 22,23	95A46RBF	12250
125 × 2,5 × 22,23	95A30RBF	12250
125 × 3,0 × 22,23	95A30RBF	12250
180 × 2,0 × 22,23	95A46RBF	8500
230 × 2,0 × 22,23	95A36RBF	6650
230 × 2,5 × 22,23	95A30RBF	6650
300 × 3,0 × 32	95A30RBF	5100
350 × 3,5 × 32	95A30RBF	4400
400 × 4,0 × 32	95A24RBF	3850

*) Other parameters available according to individual arrangements.

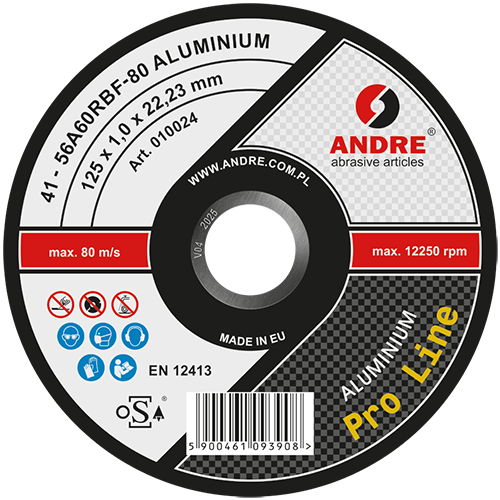

VERSION ALUMINIUM

For cutting-off non-ferrous metals and their alloys such as aluminum, bronze, brass.

ALUMINIUM
Dimensions [mm]	Charakteristics	RPM
125 × 1,0 × 22,23	56A60RBF	12250
125 × 1,6 × 22,23	56A46RBF	12250
125 × 2,5 × 22,23	56A30RBF	12250

*) Other parameters available according to individual arrangements.

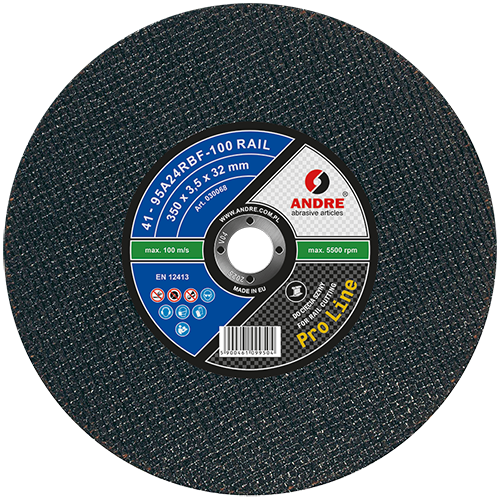

VERSION RAIL

For cutting railway and tramway rails with high-powered petrol, electric and hydraulic grinders.

RAIL
Dimensions [mm]	Charakteristics	RPM
350 × 3,5 × 32	95A24RBF	5500
350 × 4,0 × 25,4	95A24RBF	5500
400 × 4,0 × 25,4	95A24RBF	4800
400 × 4,0 × 32	95A24RBF	4800

*) Other parameters available according to individual arrangements.

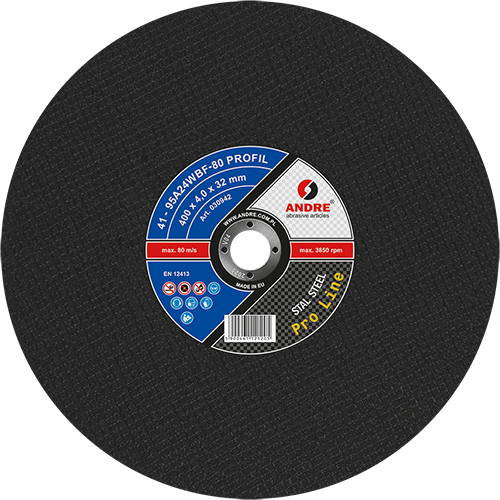

VERSION PROFIL

Special grinding wheels for cutting through platform gratings. They can be used for similar work of cutting through profiled materials.

PROFIL
Dimensions [mm]	Charakteristics	RPM
400 × 4,0 × 32	95A24WBF	4800

*) Other parameters available according to individual arrangements.

VERSION STONE

For cutting through concrete, reinforced concrete, terrazzo, natural and artificial stones, ceramic materials, as well as hard, brittle cast iron.

STONE
Dimensions [mm]	Charakteristics	RPM
115 × 1,0 × 22,23	98C60RBF	13300
115 × 2,5 × 22,23	98C30RBF	13300

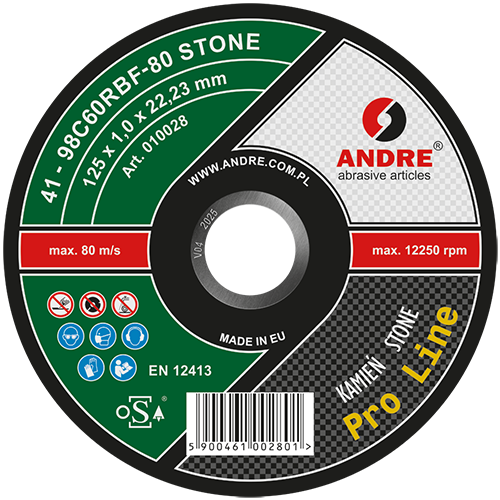

125 × 1,0 × 22,23	98C60RBF	12250
125 × 2,5 × 22,23	98C30RBF	12250
230 × 3,0 × 22,23	98C24RBF	6650
300 × 3,0 × 32	98C24RBF	5100
350 × 3,5 × 32	98C24RBF	4400
400 × 4,0 × 32	98C24RBF	3850

*) Other parameters available according to individual arrangements.

A line of economic solutions that meets the condition of a good price for the customer, while providing good performance and a high safety factor.

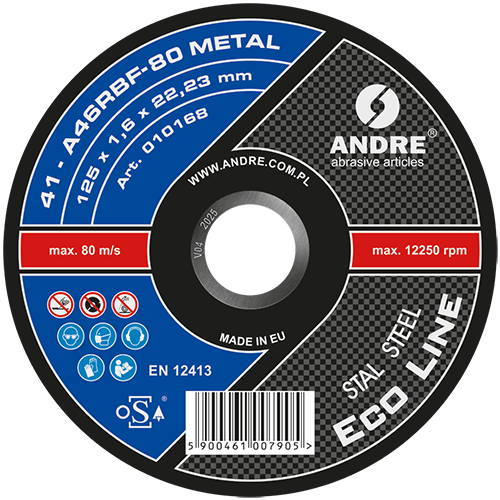

VERSION METAL

Grinding wheels intended for cutting-off operations that do not require high utility values. Application - similar to the Pro Line product line Standard version.

METAL
Dimensions [mm]	Charakteristics	RPM
115 × 1,0 × 22,23	A60RBF	13300
115 × 1,6 × 22,23	A46RBF	13300
115 × 2,5 × 22,23	A30RBF	13300
125 × 1,6 × 22,23	A46RBF	12250
125 × 2,5 × 22,23	A30RBF	12250
150 × 1,7 × 22,23	A46RBF	10200
150 × 2,5 × 22,23	A24RBF	10200
180 × 2,0 × 22,23	A36RBF	8500
230 × 2,0 × 22,23	A36RBF	6650
230 × 2,5 × 22,23	A24RBF	6650

*) Other parameters available according to individual arrangements.

VERSION METAL/INOX

Thin grinding wheels for precision cutting of universal, structural, tool, stainless and acid-resistant steels. They are free of iron, sulfur and chlorine.

METAL/INOX
Dimensions [mm]	Charakteristics	RPM

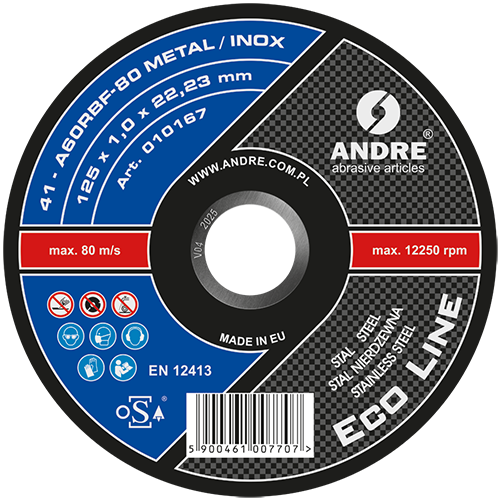

125 × 1,0 × 22,23	A60RBF	12250
125 × 1,6 × 22,23	A46RBF	12250
230 × 2,0 × 22,23	A36RBF	6650

*) Other parameters available according to individual arrangements.

A line of solutions for specific applications, meeting the condition of an extremely efficient product.

VERSION METAL

Grinding wheels designed for extremely demanding high performance cutting-off operations. Application - similar to the Pro Line product line Standard version.

METAL
Dimensions [mm]	Charakteristics	RPM

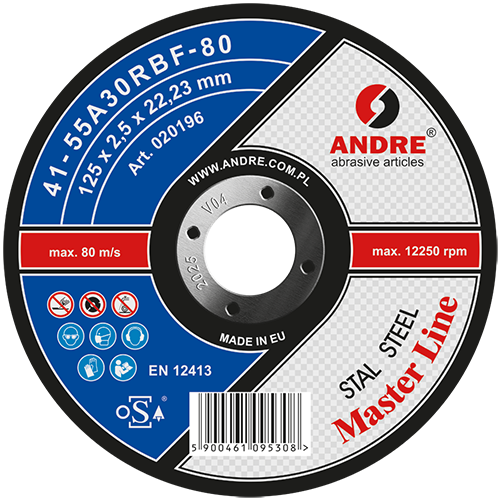

125 × 2,5 × 22,23	55A30RBF	12250
230 × 2,5 × 22,23	55A36RBF	6650

*) Other parameters available according to individual arrangements.

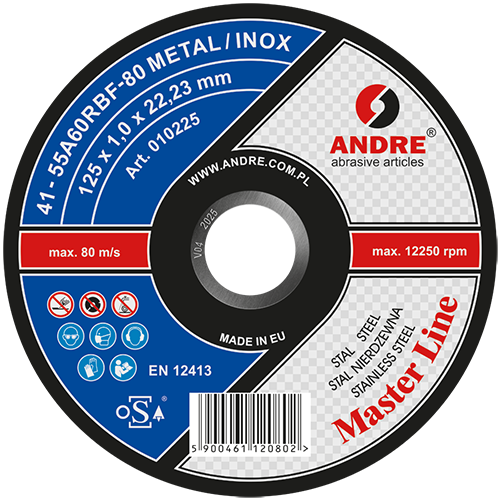

VERSION METAL/INOX

Thin grinding wheels for very efficient, precision cutting of universal, structural, tool, stainless and acid-resistant steels. They are free of iron, sulfur and chlorine.

METAL/INOX
Dimensions [mm]	Charakteristics	RPM
115 × 1,0 × 22,23	55A60RBF	13300
125 × 1,0 × 22,23	55A60RBF	12250
230 × 2,0 × 22,23	55A36RBF	6650

*) Other parameters available according to individual arrangements.

Application table - TYPE 41 and TYPE 42

Application

TYPE 41 / TYPE 42

ECO LINE

PRO LINE

MASTER LINE

METAL

METAL/INOX

STANDARD

EXTRA

METAL/INOX

INOX

ALUMINIUM

SERIA 500

RAIL

STONE

METAL

METAL/INOX

Steel - general purpose

Constructional steel

- large cross-sectional areas

- small cross-sectional areas

- thin sheets, pipes, thinwalled profiles

- operating platform grids

Tool steel

Stainless and acid

resistant steel

- general applications

- thin sheets, pipes, thinwalled profiles

Railway rails

Steel wire ropes

Chilled cast iron

Ductile cast iron

Cast steel

Aluminium and its alloys

Non-ferrous metals

Concrete, terrazzo

Stone, ceramics
