TYPE 14A1
DIAMOND AND BORON GRINDING WHEELS
Super-hard TYPE 14A1 resin-bonded grinding wheels can be used for surface grinding, contour grinding, shaft grinding, groove grinding and tool sharpening, among other applications. Capable to use on stationary CNC and conventional grinding machines.
ANDRE TYPE 14A1 super-hard resin bonded grinding wheels are produced on the basis of diamond or borazon grains, depending on the nature of the operation and the type of material to be machined.
For specialized applications, ANDRE also offers customized solutions of super-hard abrasive tools with excellent wear characteristics.

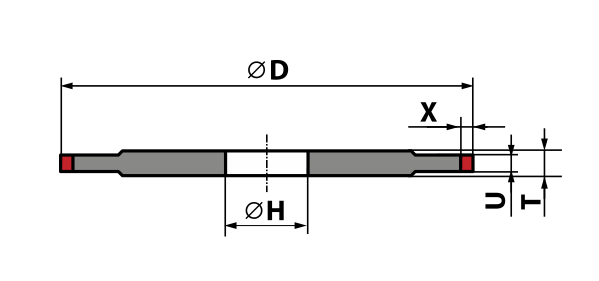

14A1 - D x U x X x T x H
Examples of labeling:
14A1-150x2x8x8x32-D126C75HBK15
14A1-150x2x8x8x32-D126C75HBK15
Download
Parameters of the offered superhard wheels of the presented type
| TYPE 14A1 | |||
| Dimensions [mm] | |||
| D | U | X | T |
| 125 | 1,5 - 4 | 5 | 6 |
| 150 | 1,5 - 6 | 7 | 8 |
| 200 | 1 - 6 | 6 | 8 |
| 200 | 2 - 6 | 8 | 8 |
| 200 | 3 | 5/8 | 8 |
*) Hole diameter H available according to individual arrangements.
**) Other parameters available according to individual arrangements.
Examples of manufactured superhard wheels of the presented type
|
D |
||
|
Code |
Dimensions [mm] |
Characteristics |
|
750796 |
125 × 2 × 5 × 6 × 20 |
D64C75HBK15 |
|
B |
||
|
Code |
Dimensions [mm] |
Characteristics |
|
750725 |
200 × 5 × 6 × 15 × 32 |
B126V240KBN3 |
The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.
Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.
Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.
ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
