Grinding and sharpening of circular saws

The task of the operation is to give the required quality to saw blades. ANDRE offers a wide range of conventional and superhard grinding wheels for the grinding operations of tooth rake face and tooth top, for both HSS and carbide blades. Only properly selected grinding wheels for specific tasks guarantee the required sharpness and long life of saw blades.

GRINDING THE TOOTH RAKE FACE OF HSS STEEL SAWS

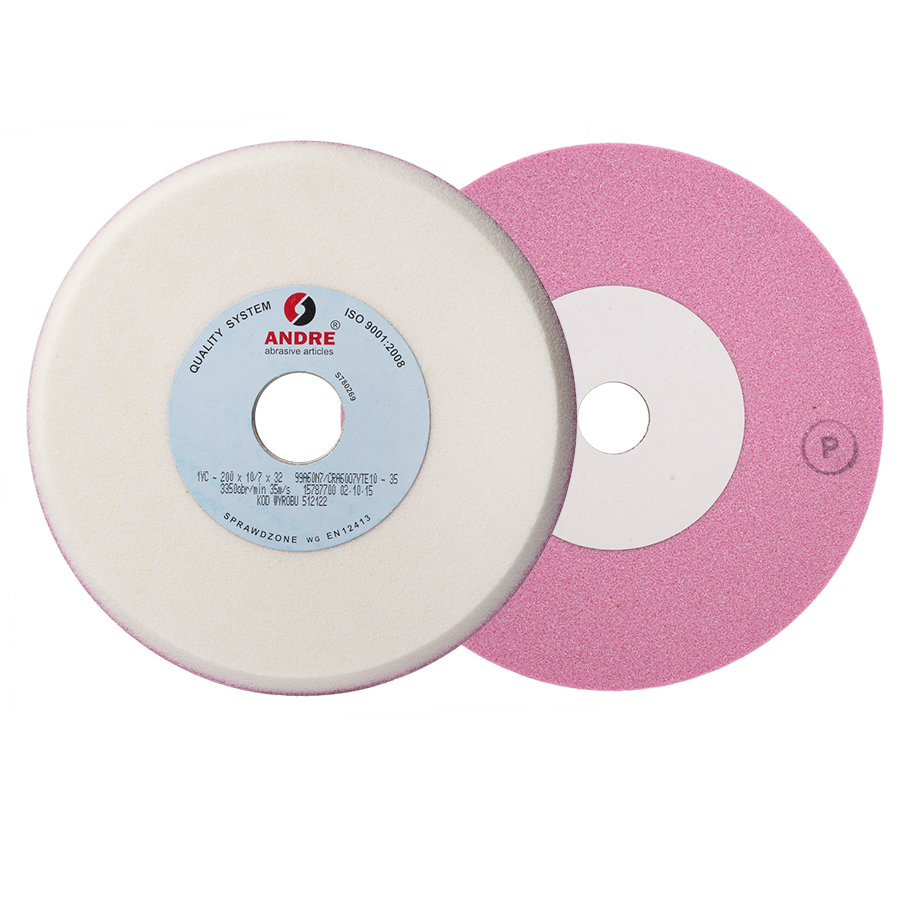

| TYPE 1YC | TYPE 1C | TYPE 12

1YC - D x T x H

1C - D x T x H

12 - D/J x T/U x H - W...E...K...

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics	Speed [m/s]
1YC	126x6/4x12,7	99A80N7/CRA100O7VE01	40
1C	200x8x32	CRA60K7VE01	40
12	125/61x13/3,2x32-W6E7K61	99A60K5VTE10	40

[*] Ask the Sales Department about the full offer and available characteristics.

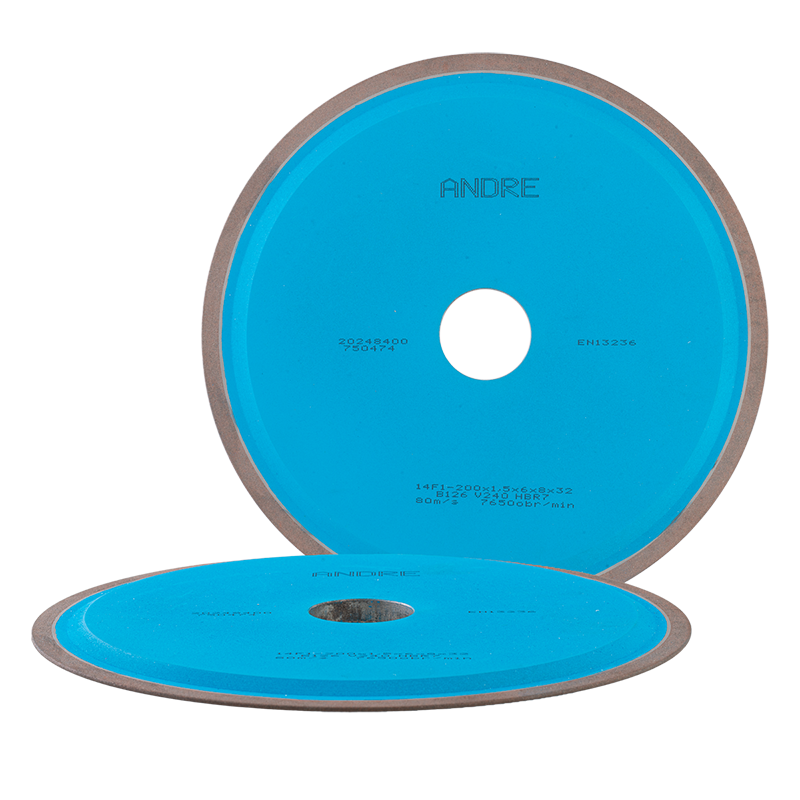

| TYPE 14F1

14F1 - D x U x X x T x H
R = 1/2 U

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics
14F1	200x2x8x8x32	B126V240OBN5
14F1	200x4x8x8x32	B126V240OBN5
14F1	200x6x8x8x32	B126V240OBN5

[*] Ask the Sales Department about the full offer and available characteristics.

GRINDING THE TOOTH RAKE FACE OF CARBIDE SAWS

| TYPE 4A2 | TYPE 12A2-20° | TYPE 12V9-20° | TYPE 12A2PA | TYPE VBA-8

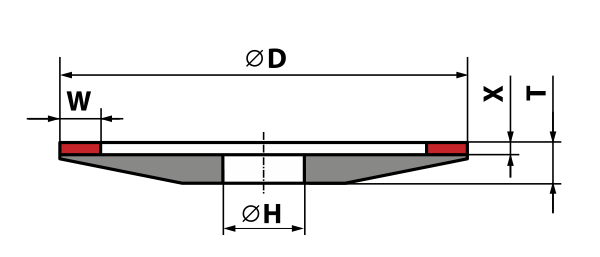

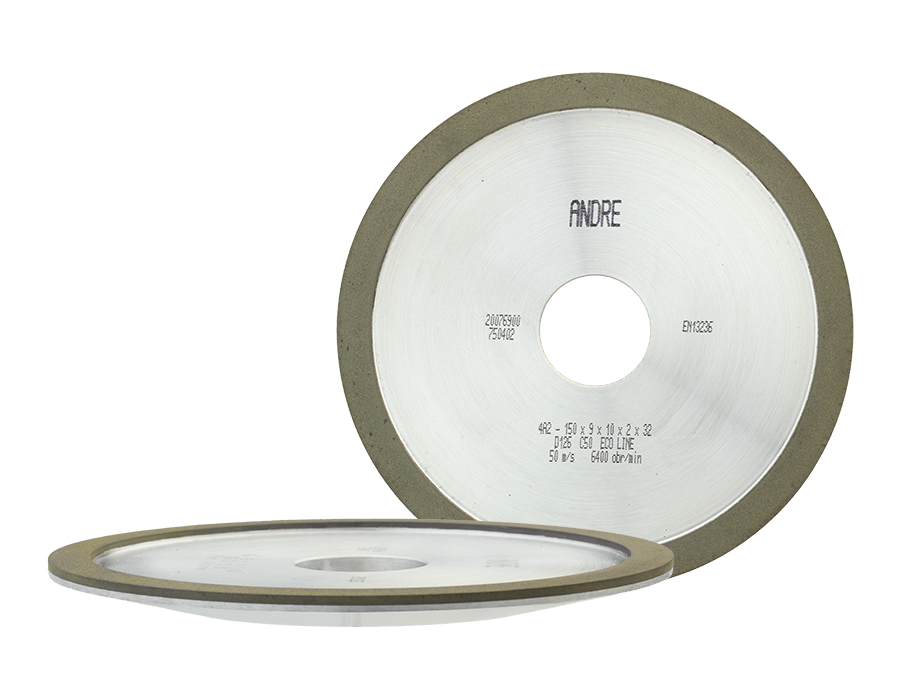

4A2 - D x T-X x W x X x H

12A2-20° - D x T-X x W x X x H

12A2PA - D x T-X x W x X x H

12V9-20° - D x T x X x U x H

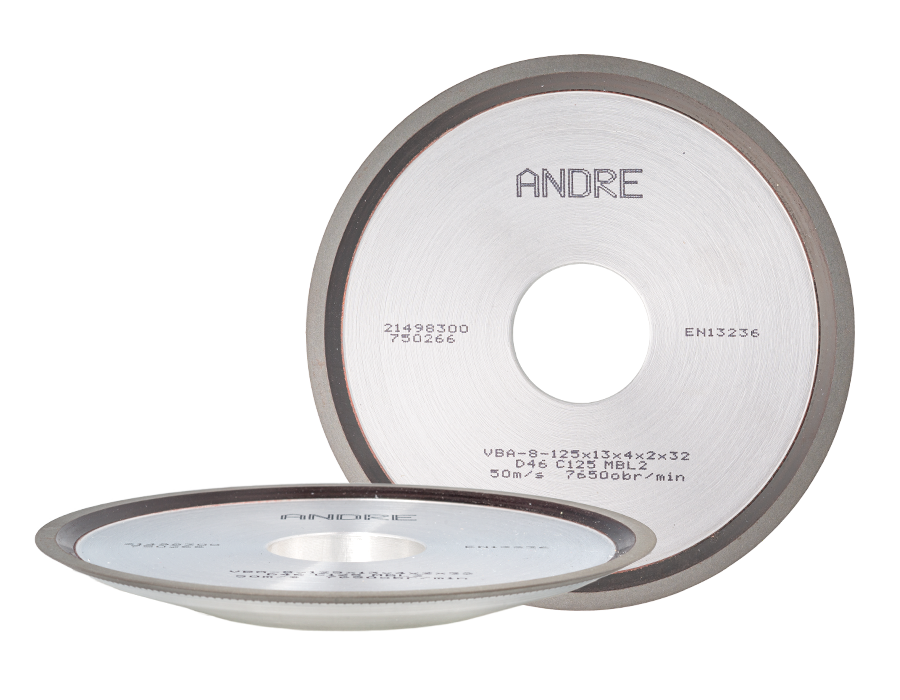

VBA-8 - D x T x W x X x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics
4A2	125x7x6x2x20	D126C50LBL2
4A2	150x9x10x2x20	D126C75LBL2
12A2-20°	125x14x6x2x20	D126C75LBL2
12A2-20°	150x16x6x2x32	D126C75LBL2
12A2PA	100x8x6x2x32	D76C100LBL2
12V9-20°	125x13x3,5x4x32	D76C100LBL2
VBA-8	125x13x4x2x32	D46C125QBL2
VBA-8	125x13x4x2x32	D76C125TBL5

[*] Ask the Sales Department about the full offer and available characteristics.

GRINDING OF THE TOOTH TOP OF CARBIDE SAWS

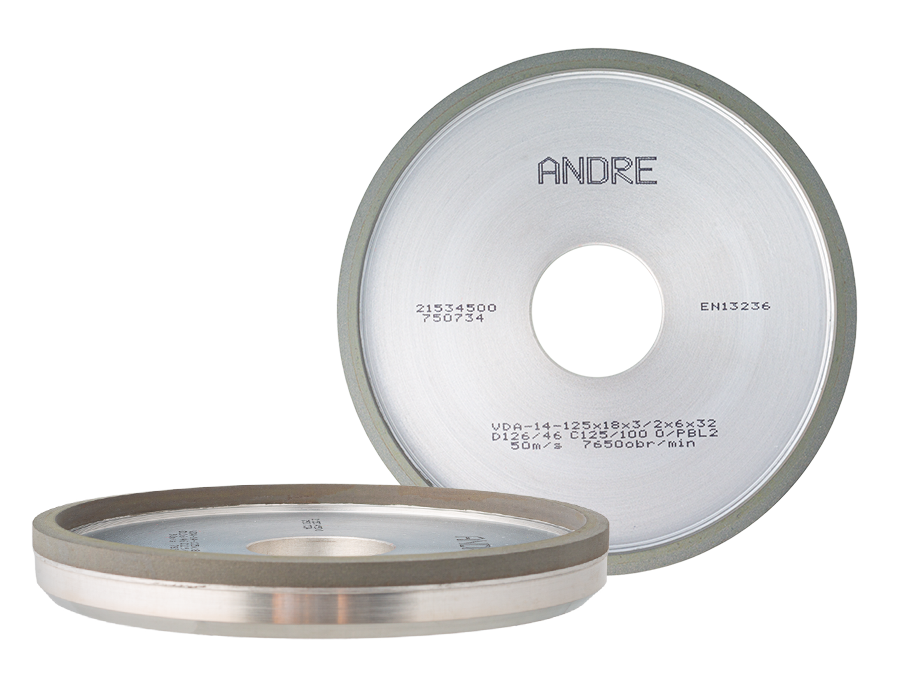

| TYPE VDA-14

VDA-14 – D x T x W1/W2 x X x H

*Examples of implemented abrasive tools in industry []**
Type	Dimensions [mm]	Characteristics
VDA-14	125x18x3/2x6x32	D126/46C100/75MBL2

[*] Ask the Sales Department about the full offer and available characteristics.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
