TYPE 3122

TRAPEZOIDAL-RING SEGMENTS

Trapezoidal-Ring segments TYPE 3122 are designed for rough and fine grinding of flat surfaces of steel, cast steel, non-ferrous metals, cast iron. They are mostly used in the tool, machine and automotive industries on surface grinding machines with segment heads.

ANDRE TYPE 3122 segments with vitrified bond are manufactured on the basis of brown aluminium oxide (95A), white aluminium oxide (99A), pink aluminium oxide (CRA), black silicon carbide (98C) and green silicon carbide (99C), among others. For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

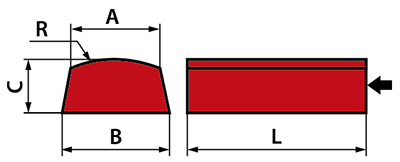

3122 - B / A x C x L - R...

Example of labeling:
3122 - 68/62x20x67-R125-99A20H12VTE10PP

Download

DIMENSION TABLE

Parameters of the offered abrasive tools of the presented type

TYPE 3122
Dimensions [mm]
B	A	C	L	R
63	57	20	100	130
65	57	25	85	150
68	62	20	67	125

*) Other parameters available according to individual arrangements.

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
