TYPE 3601

DISC WHEELS WITH THREADED INSERTS WITH PERFORATIONS

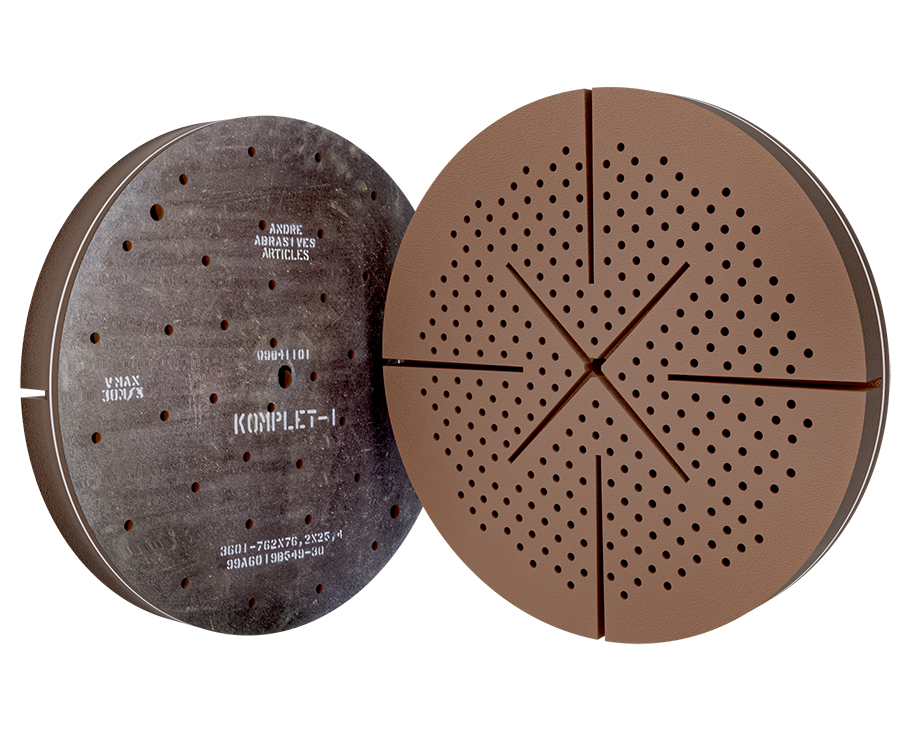

Grinding wheels with TYPE 3601 are a group of wheels designed for working with face surface, individually or in pairs. The grinding wheels have threaded inserts on their non-working face for clamping on the grinder. They are widely used in the bearing industry on Rowland, Discus grinders, In the automotive industry, they are used, for example to grind piston rings.

ANDRE TYPE 3601 resin bonded grinding wheels are mainly manufactured on the basis of brown aluminium oxide (95A), white aluminium oxide (99A) and black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

H < 0,67D

3601 - D × T × H - no. pic.

Examples of labeling:
3601 - 762x76,2x25,4-99A46IB549-30-PP/36/030

Download

DIMENSION TABLE

Parameters of the offered grinding wheels of the presented type

TYPE 3601
Dimensions [mm]					Angle scale and number of thread inserts	No. pic.

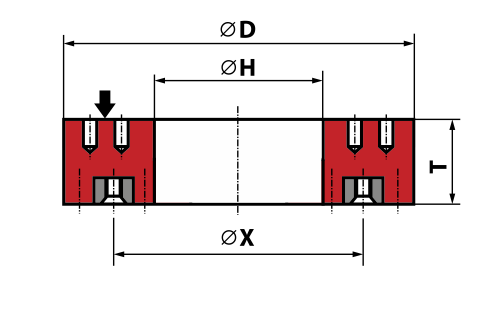

D	T	H	X	Height of threaded insert
585	65	10	133,4 285,8 381 508	12	120° 3xM10 51° 26’ 7 x M10 51° 26’ 7 x M10 25° 43’ 14 x M10	PP/36/025
	65	19				PP/36/208
	70
660	55	50	204 406 609		60° 6 x M10 60° 6 x M10 30° 12 x M10	PP/36/027
750	65	25,4	108 279,4 457,2 673,1	12	120° 3 x M10 45° 8 x M10 30° 12 x M10 22°30’ 16 x M10	PP/36/250
762	76,2	25,4				PP/36/282
				16	120° 3 x 3/8’’ 45° 8 x 3/8’’ 30° 12 x 3/8’’ 22°30’ 16 x 3/8’’	PP/36/030

*) Other parameters (dimensions, profiles) available according to individual arrangements.

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
