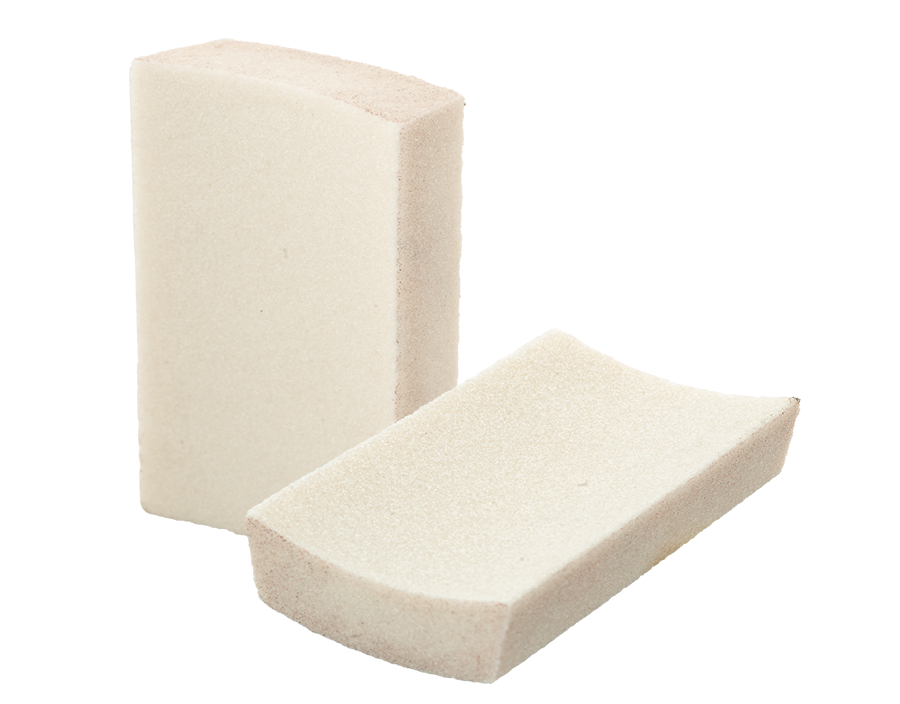

TYPE 3124

REVERSE RING SEGMENTS

Reverse ring segments TYPE 3124 are designed for rough and fine grinding of flat surfaces of steel, cast steel, non-ferrous metals, cast iron. They are mostly used in the tool, machine and automotive industries on surface grinding machines with segment heads.

ANDRE TYPE 3124 segments with vitrified bond are manufactured on the basis of, among others, white aluminium oxide (99A), black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.

3124 - B / A x C x L - R…

Examples of labeling:
3124 - 50/45x16x90-R80-9A3XC30G12VE01PP

Download

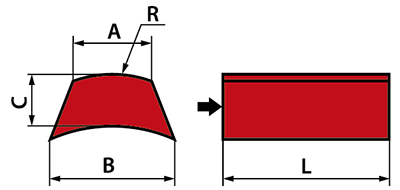

DIMENSION TABLE

Parameters of the offered abrasive tools of the presented type

TYPE 3124
Dimensions [mm]
B	A	C	L	R
50	45	16	90	80
51,5	49	18	100	80

*) Other parameters available according to individual arrangements.

The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.

Since the beginning of its activity, ANDRE company has been focusing on high quality of its products. At ANDRE, every effort is made to ensure that products meet customers' individual needs and satisfy their highest expectations even in the most difficult grinding operations.

Abrasive tools by ANDRE ABRASIVE ARTICLES are safe.

ANDRE gradually improves its technological process to offer abrasive tools with increasingly better usability and a high safety factor in accordance with the applicable standards. Membership in organizations of leading abrasive tool manufacturers and regular certification fully confirm that.
